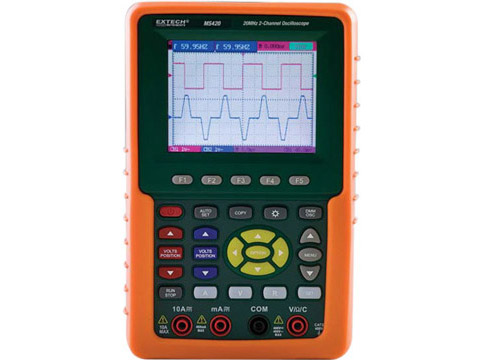

An oscilloscope is a test and measurement instrument used to observe and analyze electronic signals. It captures the waveform of a signal and displays it on a screen, allowing users to examine its amplitude, frequency, and other characteristics. By visually representing electrical signals, oscilloscopes enable engineers, technicians, and researchers to troubleshoot circuits, measure voltages, validate designs, and gain insights into signal behavior.
Types of Oscilloscopes
There are two main types of oscilloscopes: analog oscilloscopes and digital oscilloscopes. Let's take a closer look at each type:
Analog Oscilloscopes
Analog oscilloscopes were the first type of oscilloscopes to be widely used. They utilize cathode-ray tube (CRT) technology to display waveforms. Analog oscilloscopes are known for their smooth and continuous waveform display, providing a real-time representation of the input signal. These oscilloscopes are still favored by some professionals for their ability to capture fast-changing signals and their intuitive interface.

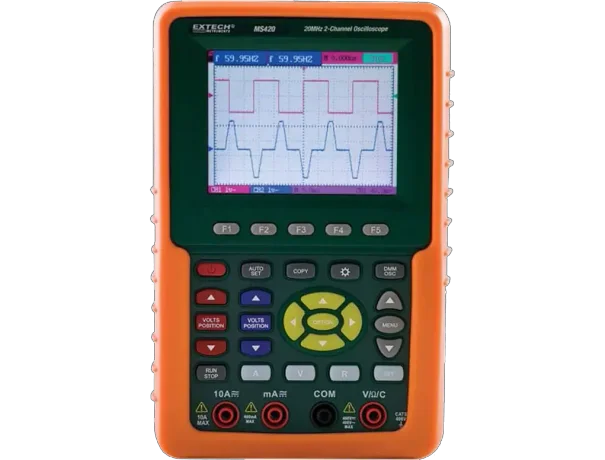

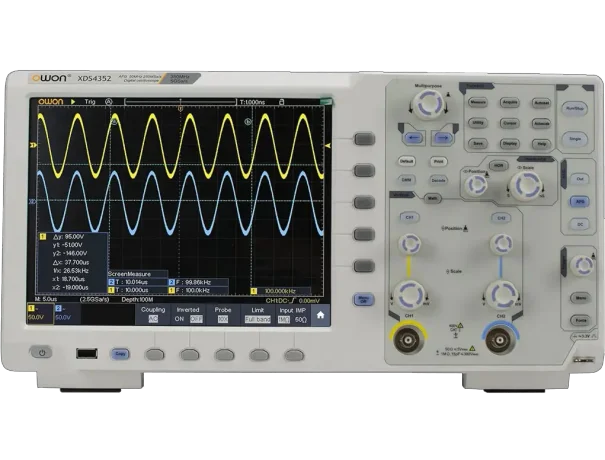

Digital Oscilloscopes
Digital oscilloscopes have become increasingly popular due to advancements in digital signal processing technology. Instead of using CRTs, digital oscilloscopes rely on digital sampling and signal processing to capture and display waveforms. They convert analog signals into digital data, allowing for precise measurements and analysis. Digital oscilloscopes offer a range of features and options such as advanced triggering, automatic measurements, waveform storage, and connectivity to external devices.
How Does an Oscilloscope Work?
Now that we have an understanding of the basic components, let's dive into how an oscilloscope works.
Signal Acquisition
The oscilloscope first acquires the input signal through its input ports. The signal is then converted from an analog format to a digital format using an analog-to-digital converter (ADC). The ADC samples the analog signal at regular intervals, capturing discrete voltage measurements.
Signal Display
Once the signal is digitized, it undergoes digital signal processing to reconstruct the waveform. The processed waveform data is then displayed on the oscilloscope's screen. The oscilloscope updates the display at a rapid rate, allowing users to visualize the waveform in real-time.
Key Features and Specifications to Consider
When choosing an oscilloscope, it's important to consider several key features and specifications to ensure it meets your specific requirements. Here are some important factors to consider:
Bandwidth
Bandwidth refers to the range of frequencies that an oscilloscope can accurately measure. It determines the highest frequency at which the oscilloscope can faithfully display the waveform. Choosing an oscilloscope with the appropriate bandwidth ensures that it can capture and display the desired signals accurately.
Sample Rate
A higher sample rate allows for more precise capturing of fast-changing signals and ensures that no important waveform details are missed.
Memory Depth
Memory depth refers to the amount of data points an oscilloscope can store and display. A larger memory depth allows for capturing longer waveform durations and provides more detailed analysis of the signal.
Probe Compatibility
Probes are essential accessories for oscilloscopes as they enable the measurement of signals. It's important to ensure that the oscilloscope you choose is compatible with a wide range of probes, including voltage probes, current probes, and differential probes, to accommodate different measurement needs.
Applications of Oscilloscopes
Oscilloscopes find applications in various fields due to their versatility and ability to analyze electrical waveforms. Some common applications include:
Electronics and Electrical Engineering
Used in electronics and electrical engineering for circuit analysis, troubleshooting, and waveform characterization. They help engineers debug circuits, verify signal integrity, and validate design performance.
Telecommunications
In the field of telecommunications, oscilloscopes play a vital role in analyzing and optimizing the performance of communication signals, including analyzing modulation schemes, measuring signal distortion, and verifying signal quality.
Automotive and Aerospace Industries
Oscilloscopes are employed in the automotive and aerospace industries for diagnostics, testing, and research. They assist in troubleshooting electrical systems, analyzing sensor outputs, and evaluating the performance of electronic control units (ECUs).
Research and Development
In research and development environments, oscilloscopes are indispensable tools for exploring and analyzing various signals. They aid in the design and testing of new electronic components, systems, and prototypes.
