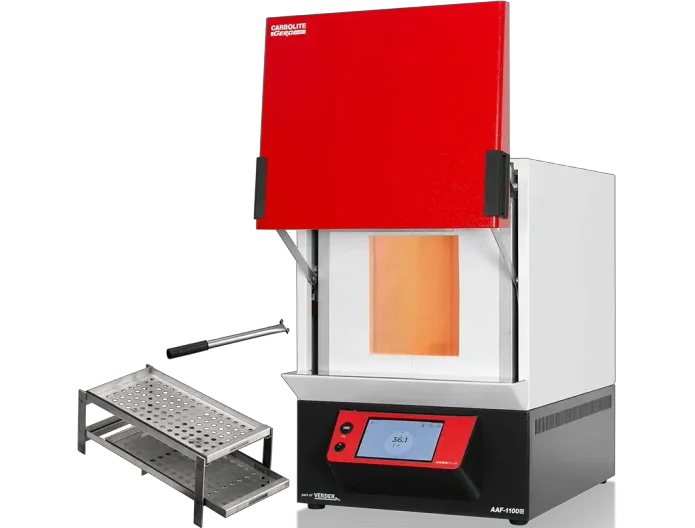

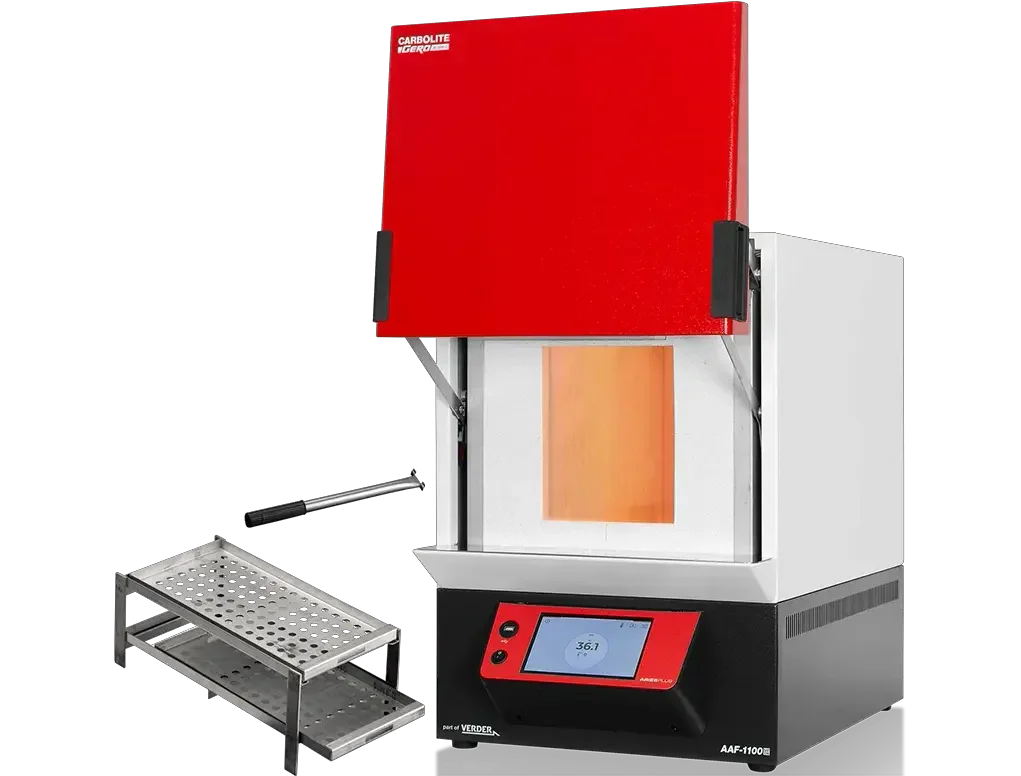

Ashing & Burn off muffle furnace 1100deg C/14liter
provide a continuous flow of preheated air through the chamber,
comply with ISO 1171:2010, ASTM D3174-04:2010 & ASTM D4422.
Air inlet & tall chimney give airflow of 4 to 5 changes per minute
Low chamber height holds airflow close to samples for optimum combustion
Heating element protected with silicone carbide tiles from chemicai attack
Preheating of air before it enters the chamber gives excellent uniformity
Two Sample trays and loading handle
Maximum temperature 1100 deg c
Volume 18 liter,Digital control
Internal :w195mm*h235mm*d400mm
External :w505*d675*8h705mm
Ceramic chimney for ventilation
