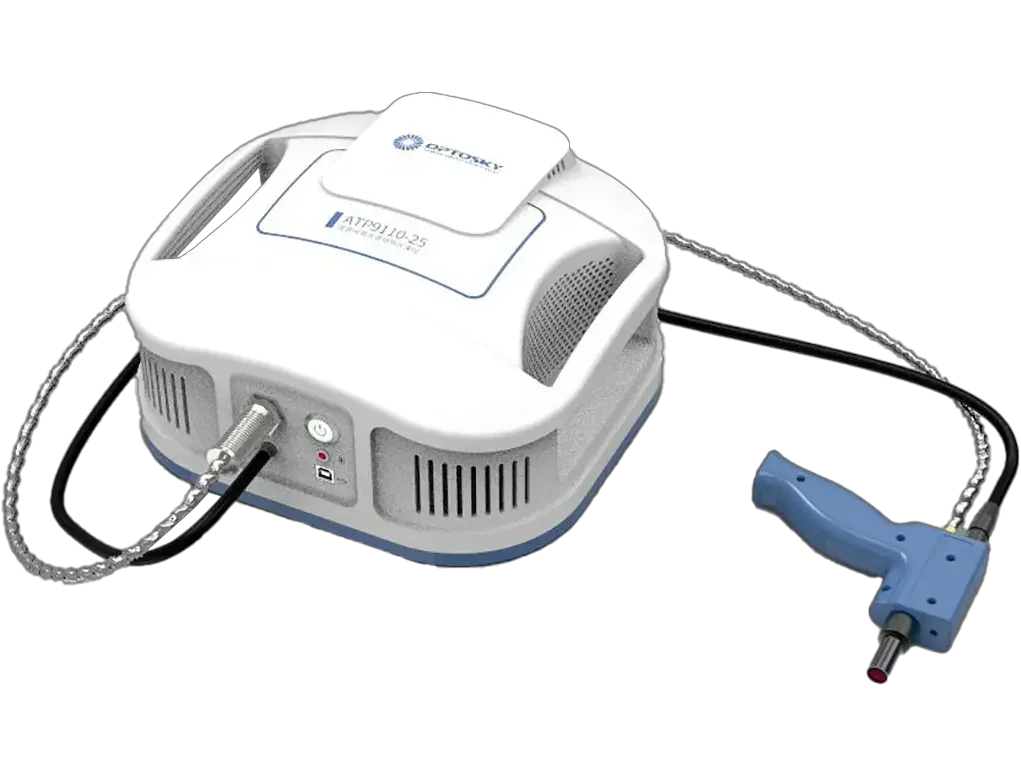

      Broadband Field Spectroradiometer Series - High-Performance FieldSpec

      Technical Specification for ATP9110 Series Broadband Field Spectroradiometer. Wavelength range: ultra-wide 300-2500 nm utilizing dual Linear CMOS and InGaAs detectors. High sensitivity and high-speed data acquisition with sampling time under 10ms. Optical parameters feature excellent wavelength accuracy (+/-0.5nm at VIS, +/-1.1nm at SWIR) and dynamic dark current correction to minimize noise. Highly configurable device: includes selectable Field of View (FOV) options (1, 8, 15, or 25 degrees via interchangeable optical fiber probes or front cameras), built-in secondary diffraction coatings, internal optical gyroscope for pitch/roll angle data tracking, integrated GPS positioning, laser target indicator, and long-life replaceable internal Li-battery (>3H standalone operation). Controlled via comprehensive PC/Tablet software package supporting multi-protocol communications (USB 2.0, Bluetooth, Wi-Fi).
      READ MORE >
        CATALOG NUMBER: OPT-ATP-9110
        $0
        • TECHNICAL DATA
        • FUNCTIONS
        • DESCRIPTION
        • ACCESSORIES
        • VIDEOS
        • DOCUMENTATION
        • DOWNLOAD
        • REQUEST A QUOTE
        Technical Specification for ATP9110 Series Broadband Field Spectroradiometer. Wavelength range: ultra-wide 300-2500 nm utilizing dual Linear CMOS and InGaAs detectors. High sensitivity and high-speed data acquisition with sampling time under 10ms. Optical parameters feature excellent wavelength accuracy (+/-0.5nm at VIS, +/-1.1nm at SWIR) and dynamic dark current correction to minimize noise. Highly configurable device: includes selectable Field of View (FOV) options (1, 8, 15, or 25 degrees via interchangeable optical fiber probes or front cameras), built-in secondary diffraction coatings, internal optical gyroscope for pitch/roll angle data tracking, integrated GPS positioning, laser target indicator, and long-life replaceable internal Li-battery (>3H standalone operation). Controlled via comprehensive PC/Tablet software package supporting multi-protocol communications (USB 2.0, Bluetooth, Wi-Fi).

        TECHNICAL DATA

          FUNCTIONS

          DESCRIPTION

          Technical Specification for ATP9110 Series Broadband Field Spectroradiometer. Wavelength range: ultra-wide 300-2500 nm utilizing dual Linear CMOS and InGaAs detectors. High sensitivity and high-speed data acquisition with sampling time under 10ms. Optical parameters feature excellent wavelength accuracy (+/-0.5nm at VIS, +/-1.1nm at SWIR) and dynamic dark current correction to minimize noise. Highly configurable device: includes selectable Field of View (FOV) options (1, 8, 15, or 25 degrees via interchangeable optical fiber probes or front cameras), built-in secondary diffraction coatings, internal optical gyroscope for pitch/roll angle data tracking, integrated GPS positioning, laser target indicator, and long-life replaceable internal Li-battery (>3H standalone operation). Controlled via comprehensive PC/Tablet software package supporting multi-protocol communications (USB 2.0, Bluetooth, Wi-Fi).

          ACCESSORIES

          VIDEOS

          DOCUMENTATION

          DOWNLOAD

          REQUEST A QUOTE

          Specifications
