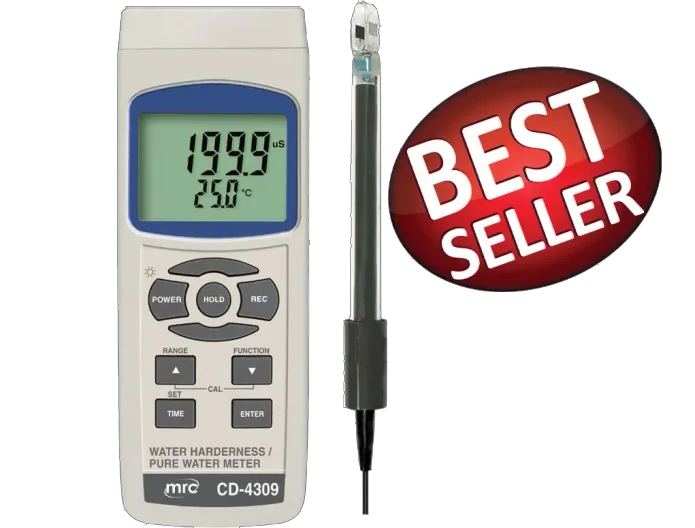

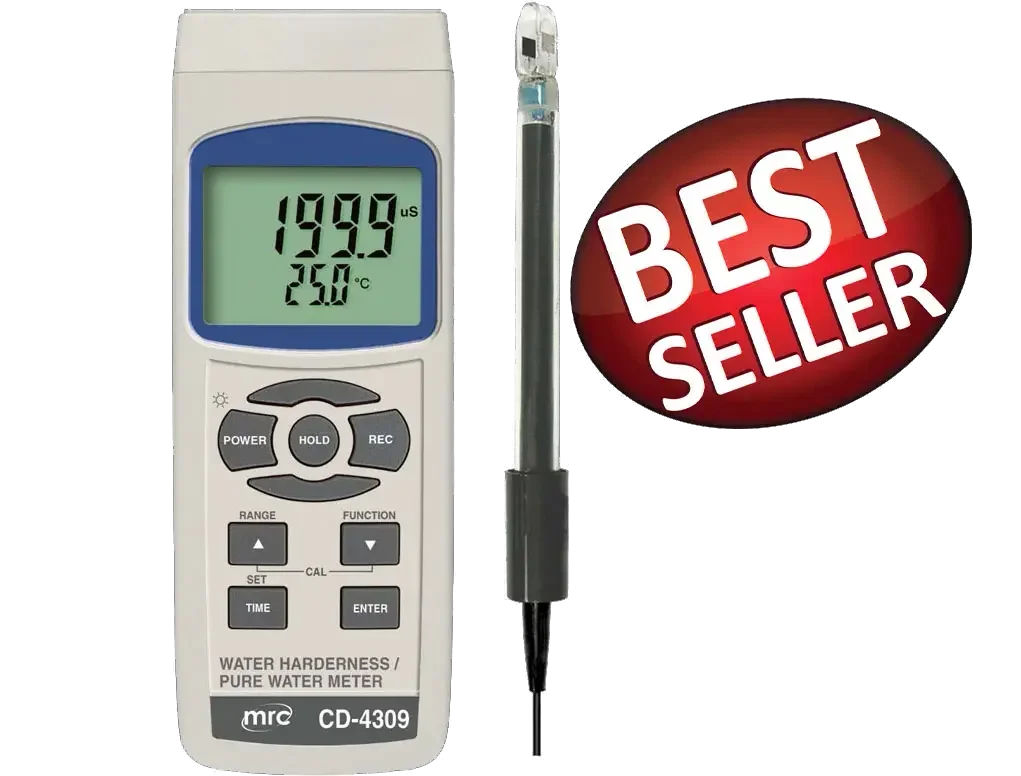

      Conductivity ,TDS, Salt, Temp, Hardness, Resistivity meter

      Conductivity ,TDS, Salt, Temp, Hardness, Resistivity meter 3

      Conductivity ,TDS, Salt, Temp, Hardness, Resistivity meter 3

      * Function : Conductivity ,TDS, Salt, Temp, Hardness.
      * High conductivity resolution, 5 ranges : 20 uS x 0.01 uS, 200 uS x 0.1 uS,
      2 mS x 0.001 mS, 20 mS x 0.01 mS, 200 mS x 0.1 mS.
      * Resistivity, 5 ranges :
      100 M -cm, 10 M -cm, 1 M -cm, 100 K -cm,10 K -cm.
      * TDS, 5 ranges :
      20/200/2,000/20,000/ 200,000 ppm.
      * Hardness, 5 ranges :
      10/100/1,000/ 10,000/100,000 ppm.
      * Pt glass electrode, high performance for pure water low conductivity
      measurement.
      * Automatic temp compensation.
      * It can select Temp. Coefficient of measurement solution.
      * Record ( Max ,Min ) Data hold, zero adjust.
      * Dot matrix LCD display.
      * Power by UM3/AA ( 1.5V ) x 6 batteries or DC 9V adapter.
      * RS232/USB computer interface.
      READ MORE >
        CATALOG NUMBER: CD-4309
        $0
        • TECHNICAL DATA
        • FUNCTIONS
        • DESCRIPTION
        • ACCESSORIES
        • VIDEOS
        • DOCUMENTATION
        • DOWNLOAD
        • REQUEST A QUOTE
        Type
        Portable
        Parameters
        Conductivity,TDS,Salt,Temperature, Hardness,Resistivity
        Conductivity Ranges (S/cm)
        20uS, 200uS, 2mS, 20mS, 200mS
        Data Logging ?
        No
        Communication Port ?
        Yes
        * Function : Conductivity ,TDS, Salt, Temp, Hardness.
        * High conductivity resolution, 5 ranges : 20 uS x 0.01 uS, 200 uS x 0.1 uS,
        2 mS x 0.001 mS, 20 mS x 0.01 mS, 200 mS x 0.1 mS.
        * Resistivity, 5 ranges :
        100 M -cm, 10 M -cm, 1 M -cm, 100 K -cm,10 K -cm.
        * TDS, 5 ranges :
        20/200/2,000/20,000/ 200,000 ppm.
        * Hardness, 5 ranges :
        10/100/1,000/ 10,000/100,000 ppm.
        * Pt glass electrode, high performance for pure water low conductivity
        measurement.
        * Automatic temp compensation.
        * It can select Temp. Coefficient of measurement solution.
        * Record ( Max ,Min ) Data hold, zero adjust.
        * Dot matrix LCD display.
        * Power by UM3/AA ( 1.5V ) x 6 batteries or DC 9V adapter.
        * RS232/USB computer interface.

        Specifications



        Operation Manual



        TECHNICAL DATA

          Type
          Portable
          Parameters
          Conductivity,TDS,Salt,Temperature, Hardness,Resistivity
          Conductivity Ranges (S/cm)
          20uS, 200uS, 2mS, 20mS, 200mS
          Data Logging ?
          No
          Communication Port ?
          Yes
          Specifications
          CD-4309_SPEC.pdf
          Operation Manual
          CD-4309_OPR.pdf

        FUNCTIONS

        DESCRIPTION

        * Function : Conductivity ,TDS, Salt, Temp, Hardness.
        * High conductivity resolution, 5 ranges : 20 uS x 0.01 uS, 200 uS x 0.1 uS,
        2 mS x 0.001 mS, 20 mS x 0.01 mS, 200 mS x 0.1 mS.
        * Resistivity, 5 ranges :
        100 M -cm, 10 M -cm, 1 M -cm, 100 K -cm,10 K -cm.
        * TDS, 5 ranges :
        20/200/2,000/20,000/ 200,000 ppm.
        * Hardness, 5 ranges :
        10/100/1,000/ 10,000/100,000 ppm.
        * Pt glass electrode, high performance for pure water low conductivity
        measurement.
        * Automatic temp compensation.
        * It can select Temp. Coefficient of measurement solution.
        * Record ( Max ,Min ) Data hold, zero adjust.
        * Dot matrix LCD display.
        * Power by UM3/AA ( 1.5V ) x 6 batteries or DC 9V adapter.
        * RS232/USB computer interface.

        ACCESSORIES

        VIDEOS

        DOCUMENTATION

        Specifications



        Operation Manual



        DOWNLOAD

        REQUEST A QUOTE

        CDPB-04

        Conductivity probe glass

        DC 9V ADAPTOR
        AP-9VA

        DC 9V Adaptor

        EXTENSION CABLE 5 meters for probe
        EXCB-05

        Extension cable 5 meters for probe

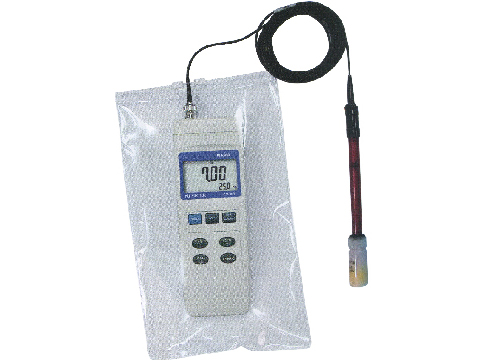

        Water resistant bag for measurment device 285X167 mm
        WP-11

        Water resistant bag for measurment device 185X167 mm

        DATA ACQUISITION SOFTWARE
        SW-U801-WIN

        Data Acquisition Software : SW-E816

        Excel Data Acquisition Software - for Win.10
        SW-E802

        Excel Data Acquisition Software - for Win.10

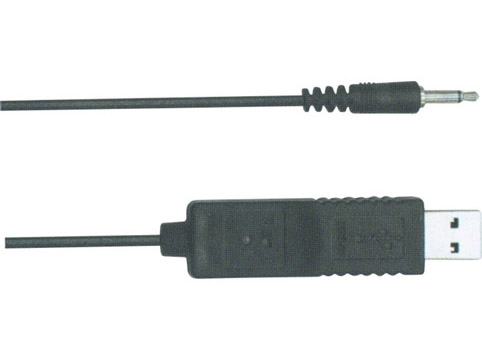

        USB CABLE
        USB-01

        USB CABLE

        RS-232 CABLE
        UPCB-02

        RS-232 CABLE

        CONDUCTIVITY STANDARD 1 BOTTLES
        EC-84-P

        Conductivity Standard 2 Bottles -- 1 Pint Each

        CONDUCTIVITY STANDARD 1 BOTTLES
        EC-1413-P

        Conductivity Standard 2 Bottles -- 1 Pint Each

        CONDUCTIVITY STANDARD 1 BOTTLE -- 1 PINT EACH
        EC-12880-P

        Conductivity Standard 2 Bottles -- 1 Pint Each
