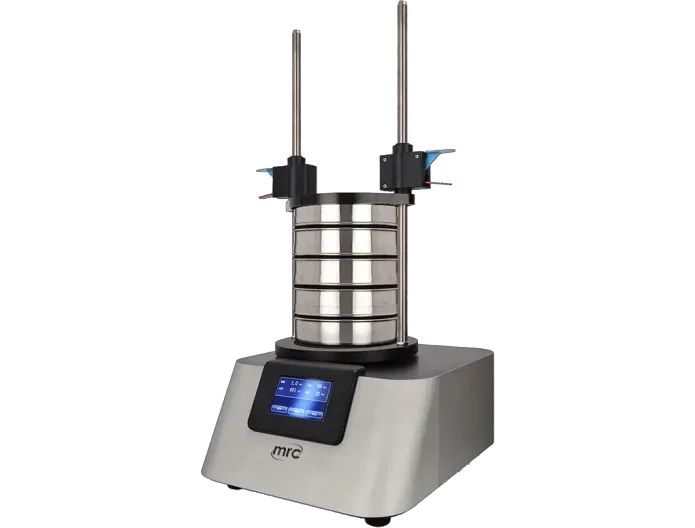

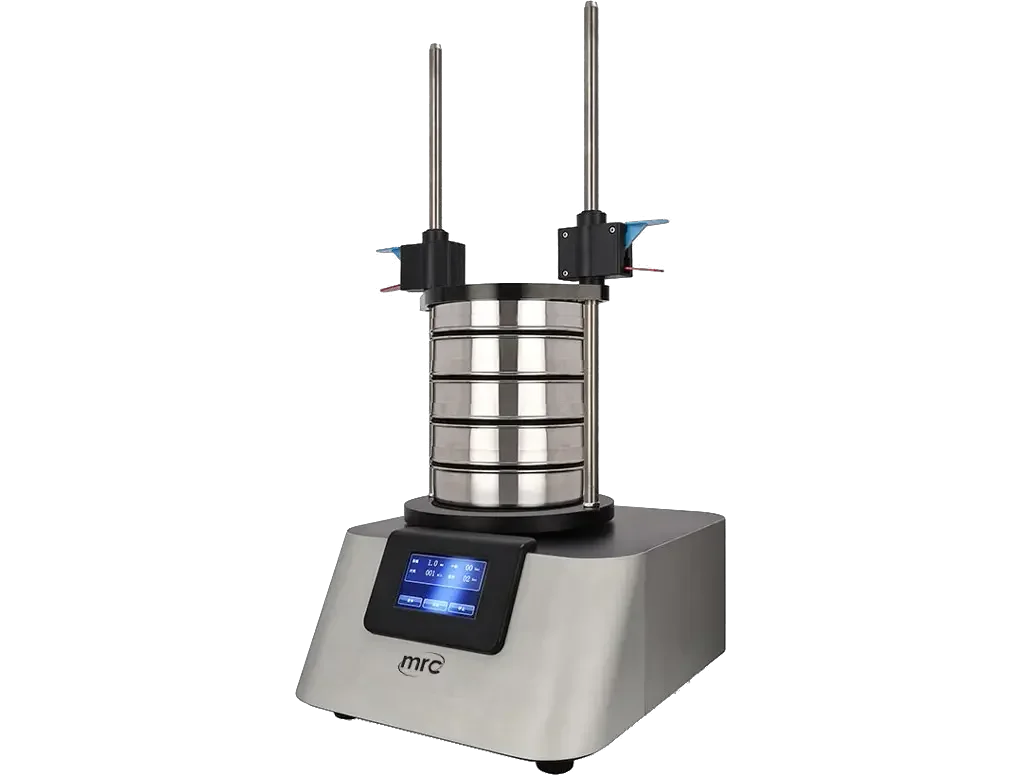

      Digital Laboratory Sieve shaker for 200mm sieves

      Digital Sieve shaker for 200mm sieves

      Digital Sieve shaker for 200mm sieves

      Digital Sieve shaker for 200mm sieves
      Dry, wet sieving.
      Low noise, maintenance-free.
      Intermittent mode can be selected.
      Unique sieving with 3D motion, high accuracy.
      Reliable, repeatable and high efficient sieving result.
      LED 5 inch touch screen, intelligent control, convenient operation.
      Measuring range20μm~25mm
      Amplitude adjustment range0.2-3.0mm
      Time setting01~99min
      Interval operation adjustment range00~99s
      Drive /sieving modeelectromagnetic drive
      Electromagnectic drive9
      Sieve diameters100/150/200/203mm(8”)
      Parameter combinations that can be stored9
      Max. number of fractions9/17
      Max. feed capacity3kg
      Rated power400W
      Power supply220V,50Hz
      Instrument size(W*D*H)400*480*240mm
      Weight43kg
      Price do not include clamping device
      READ MORE >
        CATALOG NUMBER: TSS-200D
        $0
        • TECHNICAL DATA
        • FUNCTIONS
        • DESCRIPTION
        • ACCESSORIES
        • VIDEOS
        • DOCUMENTATION
        • DOWNLOAD
        • REQUEST A QUOTE
        Digital Sieve shaker for 200mm sieves
        Dry, wet sieving.
        Low noise, maintenance-free.
        Intermittent mode can be selected.
        Unique sieving with 3D motion, high accuracy.
        Reliable, repeatable and high efficient sieving result.
        LED 5 inch touch screen, intelligent control, convenient operation.
        Measuring range20μm~25mm
        Amplitude adjustment range0.2-3.0mm
        Time setting01~99min
        Interval operation adjustment range00~99s
        Drive /sieving modeelectromagnetic drive
        Electromagnectic drive9
        Sieve diameters100/150/200/203mm(8”)
        Parameter combinations that can be stored9
        Max. number of fractions9/17
        Max. feed capacity3kg
        Rated power400W
        Power supply220V,50Hz
        Instrument size(W*D*H)400*480*240mm
        Weight43kg
        Price do not include clamping device

        TECHNICAL DATA

          FUNCTIONS

          DESCRIPTION

          Digital Sieve shaker for 200mm sieves
          Dry, wet sieving.
          Low noise, maintenance-free.
          Intermittent mode can be selected.
          Unique sieving with 3D motion, high accuracy.
          Reliable, repeatable and high efficient sieving result.
          LED 5 inch touch screen, intelligent control, convenient operation.
          Measuring range20μm~25mm
          Amplitude adjustment range0.2-3.0mm
          Time setting01~99min
          Interval operation adjustment range00~99s
          Drive /sieving modeelectromagnetic drive
          Electromagnectic drive9
          Sieve diameters100/150/200/203mm(8”)
          Parameter combinations that can be stored9
          Max. number of fractions9/17
          Max. feed capacity3kg
          Rated power400W
          Power supply220V,50Hz
          Instrument size(W*D*H)400*480*240mm
          Weight43kg
          Price do not include clamping device

          ACCESSORIES

          VIDEOS

          DOCUMENTATION

          DOWNLOAD

          REQUEST A QUOTE

          DIGITAL SIEVE SHAKER

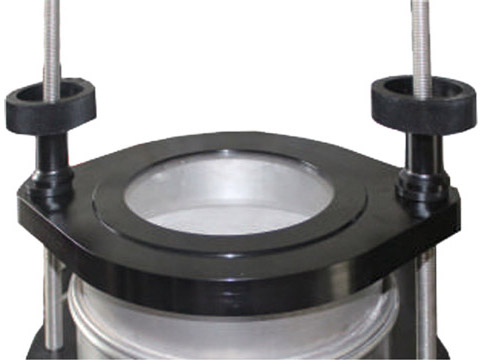

          Standard cover,threaded rod 2 pcs,standard nuts 2pcs
          01.869.0001

          Standard clamping device (standard cover, threaded rod 2pcs,standard nuts 2pcs)

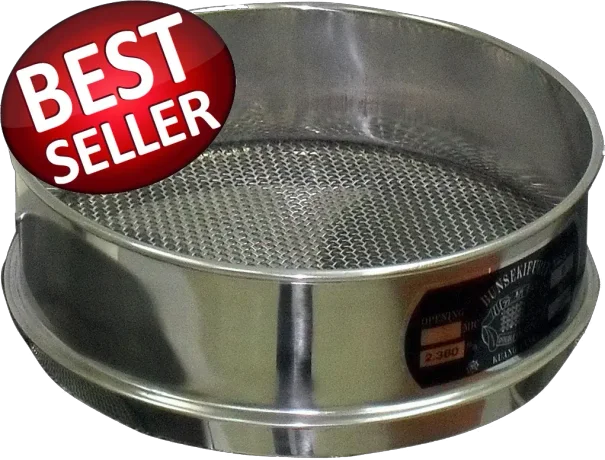

          SIEVE MESH 10 3
          SIEVE MESH 10

          Sieve mesh for laboratories, ASTM mesh 10, Holes 2.000mm

          SIEVE MESH 100
          SIEVE MESH 100

          Sieve mesh for laboratories, ASTM mesh 100, Holes 0.149mm

          SIEVE MESH 12
          SIEVE MESH 12

          Sieve mesh for laboratories, ASTM mesh 12, Holes 1.680mm

          SIEVE MESH 120
          SIEVE MESH 120

          Sieve mesh for laboratories, ASTM mesh 120, Holes 0.125mm

          SIEVE MESH 14
          SIEVE MESH 14

          Sieve mesh for laboratories, ASTM mesh 14, Holes 1.410mm

          SIEVE MESH 140
          SIEVE MESH 140

          Sieve mesh for laboratories, ASTM mesh 140, Holes 0.105mm

          SIEVE MESH 150
          SIEVE MESH 150

          LABORATORY SIEVE MESH 150 Holes 0.104mm

          SIEVE MESH 16
          SIEVE MESH 16

          Sieve mesh for laboratories, ASTM mesh 16, Holes 1.190mm

          SIEVE MESH 160
          SIEVE MESH 160

          Sieve mesh for laboratory, ASTM mesh 160, Holes 0.096mm

          SIEVE MESH 170
          SIEVE MESH 170

          Sieve mesh for laboratory, ASTM mesh 170, Holes 0.088mm

          SIEVE MESH 18
          SIEVE MESH 18

          Sieve mesh for laboratories, ASTM mesh 18, Holes 1.000mm

          SIEVE MESH 180
          SIEVE MESH 180

          Sieve mesh for laboratory, ASTM mesh 180, Holes 0.080mm

          SIEVE MESH 20
          SIEVE MESH 20

          Sieve mesh for laboratories, ASTM mesh 20, Holes 0.840mm

          SIEVE MESH 200
          SIEVE MESH 200

          Laboratory SIEVE MESH 200, Holes 0.074mm

          SIEVE MESH 230
          SIEVE MESH 230

          LABORATORY SIEVE MESH 230, Holes 0.062mm

          SIEVE MESH 25
          SIEVE MESH 25

          Sieve mesh for laboratories, ASTM mesh 25, Holes 0.710mm

          SIEVE MESH 270
          SIEVE MESH 270

          SIEVE MESH 270 for Laboratory, Holes 0.053mm

          SIEVE MESH 30
          SIEVE MESH 30

          Sieve mesh for laboratories, ASTM mesh 30, Holes 0.590mm

          SIEVE MESH 300
          SIEVE MESH 300

          Laboratory SIEVE MESH 300, Holes 0.050mm

          SIEVE MESH 325
          SIEVE MESH 325

          Laboratory SIEVE MESH 325, Holes 0.044mm

          SIEVE MESH 35
          SIEVE MESH 35

          Sieve mesh for laboratories, ASTM mesh 35, Holes 0.500mm

          SIEVE MESH 350
          SIEVE MESH 350

          Laboratory SIEVE MESH 350, Holes 0.040mm

          SIEVE MESH 4
          SIEVE MESH 4

          LABORATORY SIEVE MESH 4", Holes 4.760mm

          SIEVE MESH 40
          SIEVE MESH 40

          Sieve mesh for laboratories, ASTM mesh 40, Holes 0.420mm

          SIEVE MESH 400
          SIEVE MESH 400

          Laboratory SIEVE MESH 400, Holes 0.037mm

          SIEVE MESH 45
          SIEVE MESH 45

          Sieve mesh for laboratories, ASTM mesh 45, Holes 0.350mm

          SIEVE MESH 5
          SIEVE MESH 5

          LABORATORY SIEVE MESH 5", Holes 4.000mm

          SIEVE MESH 50
          SIEVE MESH 50

          Sieve mesh for laboratories, ASTM mesh 50, Holes 0.297mm

          SIEVE MESH 500
          SIEVE MESH 500

          Laboratory SIEVE MESH 500, Holes 0.025mm

          SIEVE MESH 6
          SIEVE MESH 6

          LABORATORY SIEVE MESH 6", Holes 3.360mm

          SIEVE MESH 60
          SIEVE MESH 60

          Sieve mesh for laboratories, ASTM mesh 60, Holes 0.250mm

          SIEVE MESH 7
          SIEVE MESH 7

          LABORATORY SIEVE MESH 7", Holes 2.830mm

          SIEVE MESH 70
          SIEVE MESH 70

          Sieve mesh for laboratories, ASTM mesh 70, Holes 0.210mm

          SIEVE MESH 8
          SIEVE MESH 8

          LABORATORY SIEVE MESH 8", Holes 2.380mm

          SIEVE MESH 80
          SIEVE MESH 80

          Sieve mesh for laboratories, ASTM mesh 80, Holes 0.177mm

          SIEVE MESH 250
          SIEVE MESH 250

          SIEVE MESH 250 for Laboratory, Holes 0.061mm

          SIEVE MESH 1 1/2"
          SIEVE MESH 1 1-2 INC

          LABORATORY SIEVE MESH 1 1/2", Holes 38.100mm

          Sieve mesh ASTM mesh 1 1/4"
          SIEVE MESH 1 1-4 INC

          Sieve mesh for laboratories, ASTM mesh 1 1/4", Holes 31.700mm

          SIEVE MESH 1"
          SIEVE MESH 1 INCH

          Sieve mesh for laboratories, ASTM mesh 1", Holes 25.400mm

          SIEVE MESH 1/2"
          SIEVE MESH 1-2 INCH

          Sieve mesh for laboratories, ASTM mesh 1/2", Holes 12.700mm

          SIEVE MESH 1/4"
          SIEVE MESH 1-4 INCH

          Sieve mesh for laboratories, ASTM mesh 1/4", Holes 6.350mm

          SIEVE MESH 2 1/2"
          SIEVE MESH 2 1-2 INC

          LABORATORY SIEVE MESH 2 1/2", Holes 63.500mm

          SIEVE MESH 2"
          SIEVE MESH 2 INCH

          LABORATORY SIEVE MESH 2 INCH, Holes 50.800mm

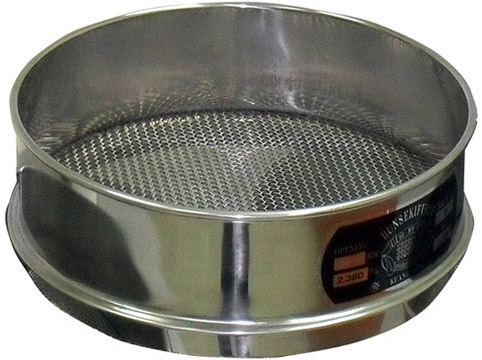

          SIEVE MESH 3 1/2"
          SIEVE MESH 3 1-2 INC

          LABORATORY SIEVE MESH 3 1/2", Holes 88.900mm

          SIEVE MESH 3/4"
          SIEVE MESH 3-4 INCH

          Sieve mesh for laboratories, ASTM mesh 3/4", Holes 19.100mm

          SIEVE MESH 3/8"
          SIEVE MESH 3-8 INCH

          Sieve mesh for laboratories, ASTM mesh 3/8", Holes 9.520mm

          SIEVE MESH 4"
          SIEVE MESH 4 INCH

          LABORATORY SIEVE MESH 4 INCH, Holes 101.6mm

          SIEVE MESH 5/8"
          SIEVE MESH 5-8 INCH

          Sieve mesh for laboratories, ASTM mesh 5/8", Holes 15.900mm

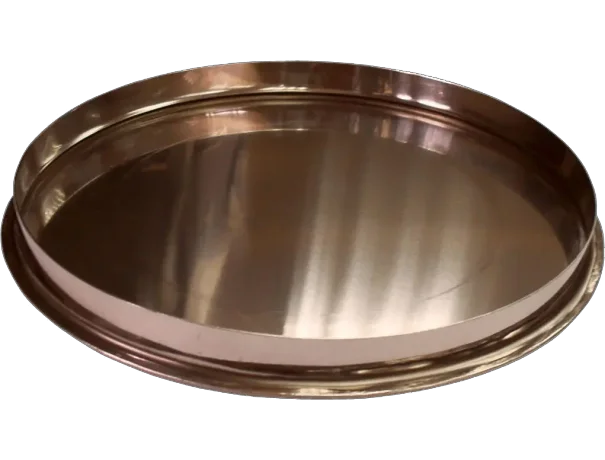

          SIEVE COVER 3
          SIEVE COVER

          Sieve Lid

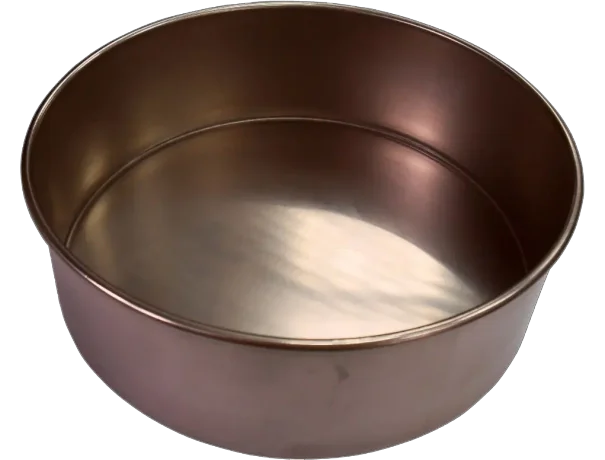

          SIEVE CONTAINER 3
          SIEVE-CONTAINER

          Sieve Receiver Container
