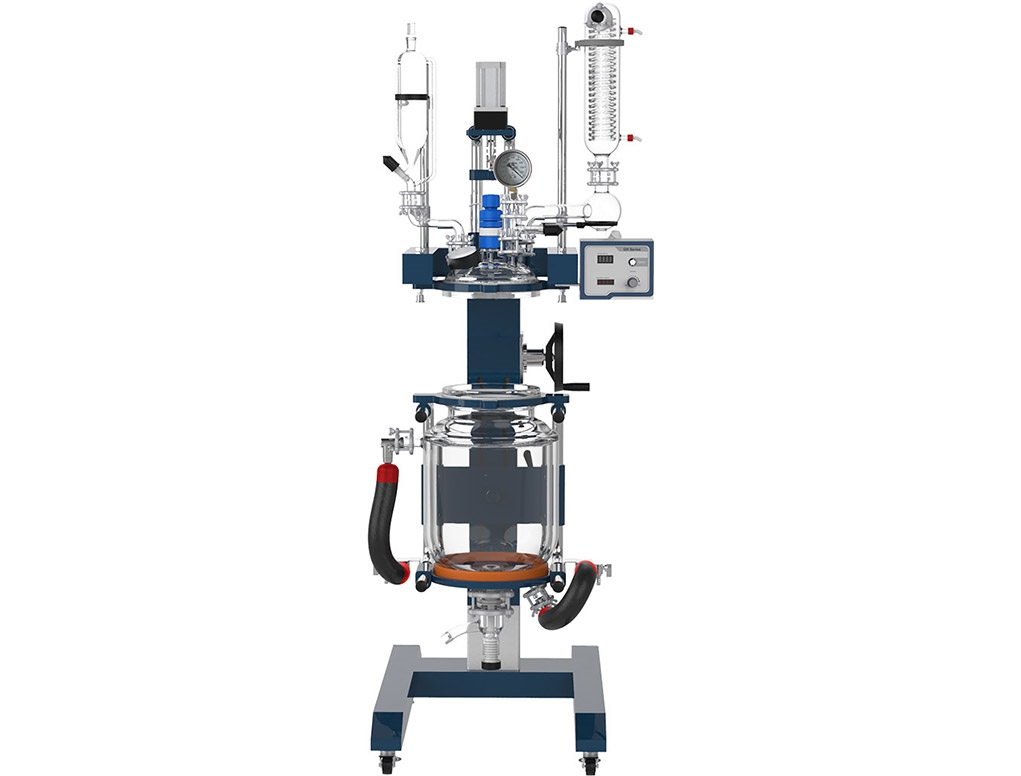

Double-wall Lifting Glass Reactor
Vessel volume: 10 L
Jacket volume: 3 L
The glass vessel can be lifted up and can be angled 120 degree both sides, which makes it more convenient to operate and clean.
Glass material: High borosilicate glass 3.3
Working temperature range: -80~200℃
Bearable temperature difference: 80℃
Operating pressure: Ordinary or negative pressure; its vacuum degree can reach to -0.095MPa.
Stirring Motor: 50~500rpm, 90 W
Anti-corrosion discharge valve
PTFE stirring blade
Stirring shaft is stainless steel coated with PTFE
Dimensions: 850W×1100D×2050H mm
