Flash Point Tester

A flash point tester is a device used to measure the flash point of a liquid, which is the lowest temperature at which it can produce a vapor above its surface that can be ignited in the presence of an ignition source. The flash point is an important property of liquids that are used as fuels, as it is a measure of their flammability. Common types of flash point testers include the Pensky-Martens closed cup tester and the Cleveland open cup tester.

What is Flash point Tester

A Flash Point Tester is a crucial instrument used in various industries to measure the flash point of a substance. The flash point is the lowest temperature at which a liquid emits sufficient vapor to form an ignitable mixture in the air. This property is vital for assessing the flammability and safety of liquids, especially in sectors like petrochemicals, paints, and lubricants.

What is Flash Point Tester used for?

Flash point testers are used to determine the flash point of a liquid, which is an important measure of its flammability. The flash point is the lowest temperature at which a liquid produces a vapor above its surface that can be ignited in the presence of an ignition source.

In industries such as petrochemical, oil and gas, transportation, and storage, flash point testing is used to evaluate the safety and handling properties of liquid fuels and other flammable liquids. It is also used to classify and label chemicals as per regulatory requirements, and to ensure the safe transport and storage of flammable liquids.

Additionally, flash point testing is used in the production and quality control of products such as paints, coatings, and adhesives, to ensure that they meet the required safety standards.

How does Flash Point Tester work?

Flash point testers work by heating a sample of the liquid being tested and introducing an ignition source, such as a flame, at a controlled rate. As the liquid is heated, its vapor pressure increases, and at a certain point, the vapor above the liquid's surface becomes flammable. The flash point is the temperature at which this occurs.

There are two main types of flash point testers: open cup and closed cup.

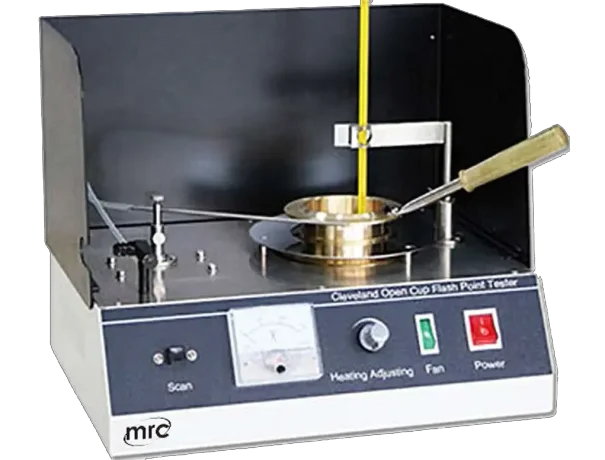

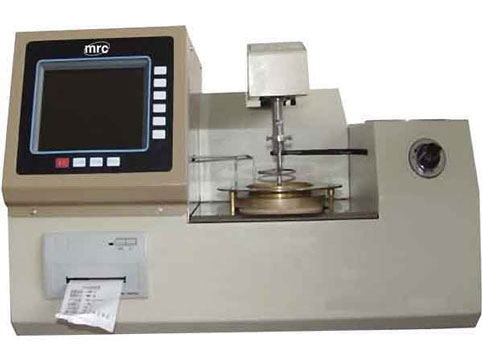

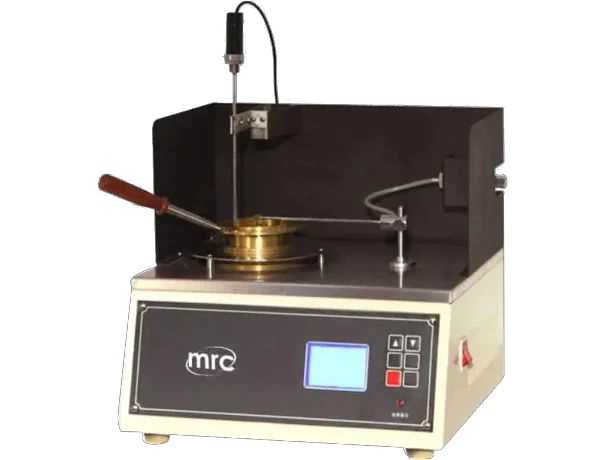

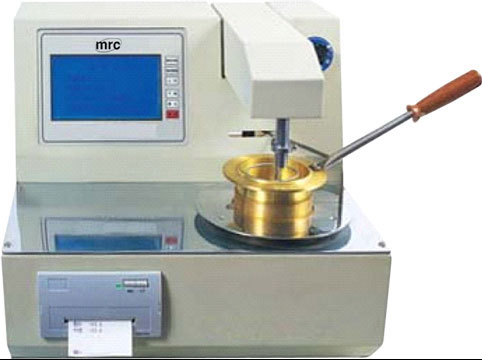

An open cup tester, such as the Cleveland open cup tester, heats the liquid in an open container, and an ignition source is brought into contact with the vapor above the liquid's surface. The flash point is the temperature at which the vapor is ignited.

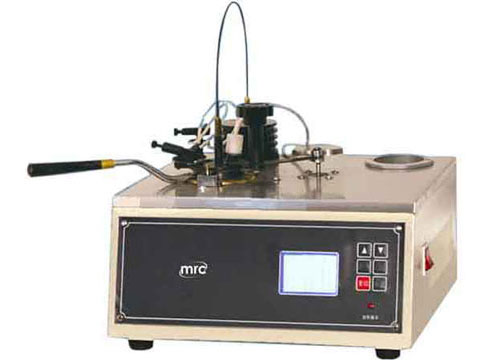

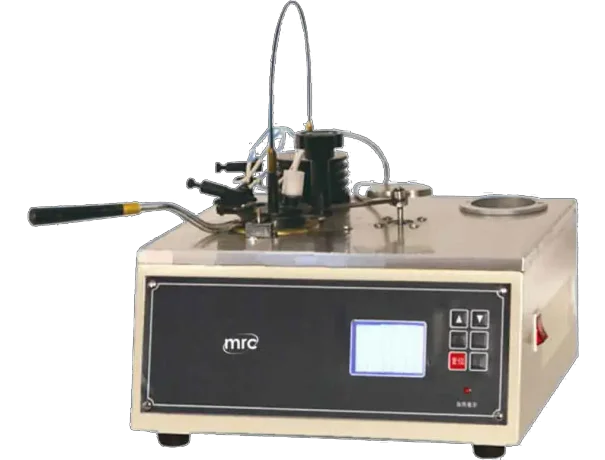

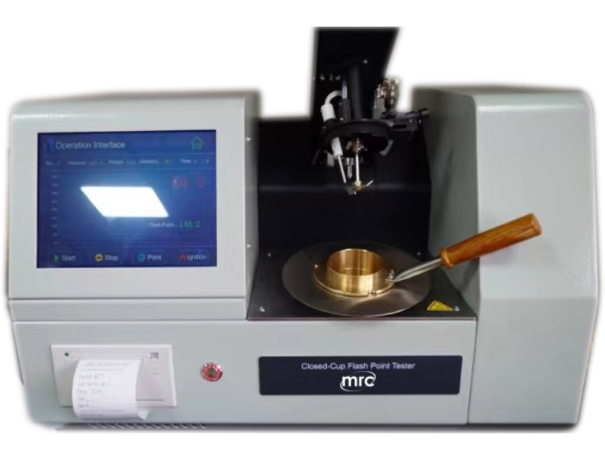

A closed cup tester, such as the Pensky-Martens closed cup tester, heats the liquid in a sealed container and uses a small opening to introduce an ignition source into the vapor above the liquid's surface. The flash point is the temperature at which the vapor is ignited.

Both methods are ASTM and ISO standardized, and the results obtained will depend on the method used. The result will also depend on the sample being tested, the testing conditions, and the equipment used.

What Determines Flash Point?

The flash point of a liquid is determined by a combination of factors, including its chemical composition, vapor pressure, and volatility.

1. Chemical composition: Different chemicals have different flash points. For example, gasoline has a much lower flash point than diesel fuel.
2. Vapor pressure: The flash point of a liquid decreases as its vapor pressure increases. This means that liquids with higher vapor pressures have lower flash points.
3. Volatility: The volatility of a liquid, or its ability to evaporate, also affects its flash point. More volatile liquids have lower flash points than less volatile liquids.
4. Impurities: The presence of impurities in a liquid can also affect its flash point. For example, water in a fuel can lower its flash point.
5. Temperature : The flash point of a liquid also depends on the temperature at which it is tested, typically the flash point decreases as the temperature increases.

Flash point testing is typically done at a standard temperature (usually around 25°C) and pressure (1 atm) in order to have a consistent and comparable results.

Uses of Flash Point Tester

Flash Point Testers serve a variety of purposes, including:

1. Safety Assessment:

   - Identifying the fire hazards associated with volatile substances.

   - Ensuring compliance with transportation and storage safety regulations.

2. Quality Control:

   - Verifying the consistency of products like fuels, oils, and chemicals.

   - Detecting contamination in industrial fluids.

3. Regulatory Compliance:

   - Meeting standards set by organizations like ASTM, ISO, and IEC for safe handling and distribution of hazardous materials.

4. Product Development:

   - Aiding in the formulation of new chemicals or materials by determining their volatility and flammability.

Applications

Flash Point Testers are utilized across various industries:

- Petroleum Industry: For testing fuels like gasoline, diesel, kerosene, and jet fuel.

- Chemical Manufacturing: To classify and label chemicals according to their flammability.

- Paints and Coatings: To ensure that products meet safety and performance standards.

- Pharmaceuticals: For analyzing solvents and intermediates used in drug production.

- Food Industry: Testing edible oils to ensure stability and safety.

Types of Flash Point Testers

There are primarily two types of flash point testers:

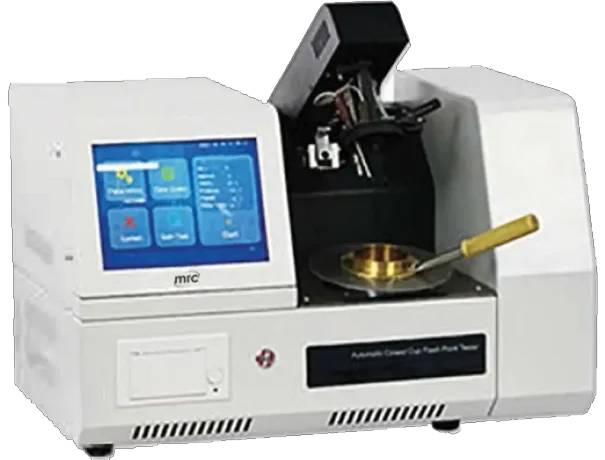

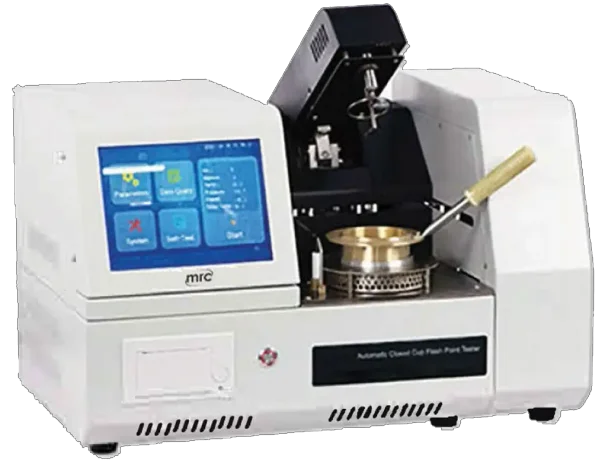

1. Closed Cup Flash Point Testers:

   - The sample is enclosed, minimizing exposure to air.

   - Commonly used for precise and low-temperature flash point measurements.

   - Examples: Pensky-Martens, Abel, and Tag Closed Cup testers.

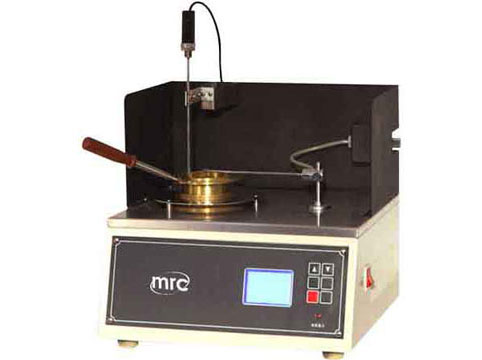

2. Open Cup Flash Point Testers:

   - The sample is exposed to air during testing.

   - Suitable for substances with higher flash points.

   - Example: Cleveland Open Cup tester.

How Does a Flash Point Tester Work?

Flash Point Testers operate by heating a liquid sample at a controlled rate while monitoring its temperature and behavior. The process can be summarized as follows:

1. Sample Preparation:

   - A specified quantity of liquid is placed in the tester's sample cup.

2. Heating:

   - The tester gradually heats the sample at a standard rate.

3. Ignition Source:

   - A flame or spark is periodically introduced to the sample.

4. Observation:

   - The temperature at which the vapor above the liquid ignites momentarily is recorded as the flash point.

5. Automatic vs. Manual Testing:

   - Modern testers often automate heating, ignition, and data logging for accuracy and ease of use, while manual testers require operator intervention.

Advantages of using the product

- Improved Safety: Identifies hazardous substances, helping mitigate risks.

- Accurate Classification: Aids in proper labeling for transportation and storage.

- Regulatory Adherence: Ensures compliance with international safety standards.

- Versatile Applications: Can test a wide range of liquids across industries.
