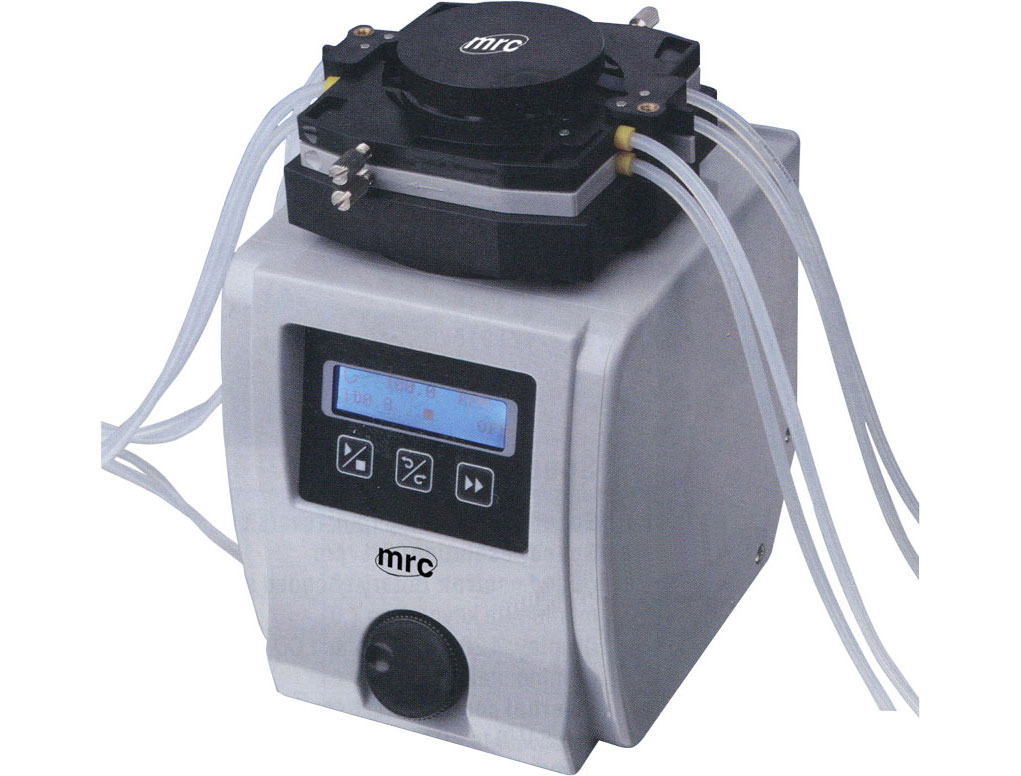

The pump delivers flow rates
from 0.005 to 380 mL/min. It has flow rates
display and flow rates calibration functions.
It also has functions of speed adjustment,
start/stop, cw/ccw, prime (rinsing), tubing
selection, RS485 communication,
Speed 1.0 to 100.0 rpm, reversible
Speed resolution 0.1rpm
Speed Control Rotary encoded switch coupled
with membrane keypad
Display 128x32 graphic LCD displays
current running status
External control
Start/stop & cw/ccw control,
o to 5V, 0 to 10V, 4
Communication interface RS485
Power supply AC 90 - 260V 50Hz/60Hz
Power consumption 50W
Operating condition Temperature 0 to 40°C
Relative humidity < 80%
Dimensions (LxWxH) 190x162x275 (mm)
Drive weight 3.5kg
IP rating IP 31
