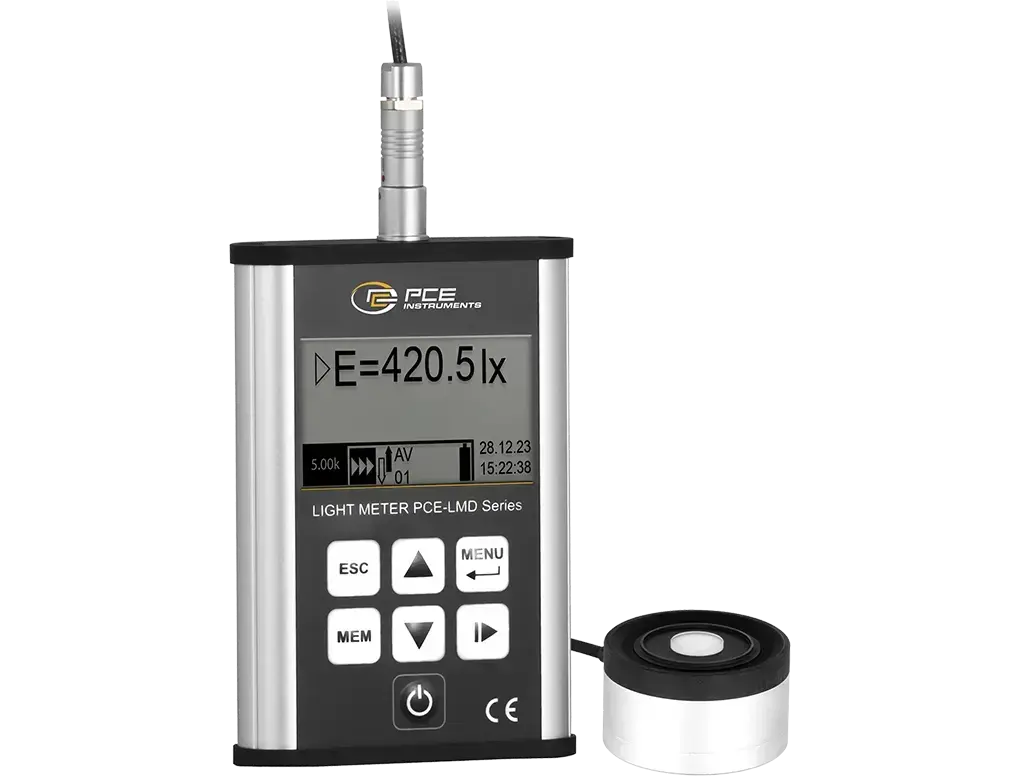

Technical Specifications - PCE-LMD 200.
Measurement Performance.
Standards & Accuracy: Precision Class A per DIN 5032-7; total error ≤2.0%.
Measuring Range: From 0.000 lx to 500 klx.
Maximum Resolution: 0.001 lx in the lowest range.
Sampling Rate: 1 Hz (one measurement per second).
Data Management & Interface.
Storage: 8 GB Micro SD card; data saved as text documents.
Storage Interval: Adjustable between 1 and 60 seconds.
Data Interface: Micro-USB interface.
Hardware Specifications.
Sensor: External sensor with extension rod of approximately 1 m.
Power Supply: 1500 mAh rechargeable battery; 23-hour operating time.
Environmental Conditions: Operating temperature -20 to 50 °C; IP20 protection.
Dimensions & Weight: 118 x 74 x 21 mm; weight 172 g.
Optional Accessory: Luminance Adapter: For surface or distance measurements with a 1° angle.
