The impermeability test, also known as the bubble test, is a method used to evaluate the integrity and leak-proof nature of inflatable bags and sealed packages.
This test is widely used in the food industry and various other sectors to ensure the quality and safety of packaging.
Test Procedure,How the Impermeability Test Works: Bubble Detection in Water

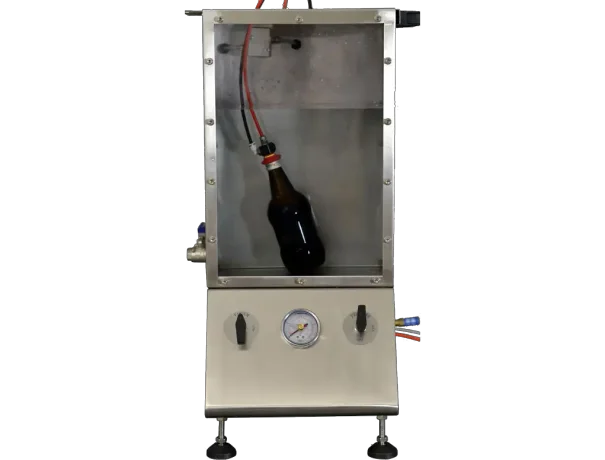

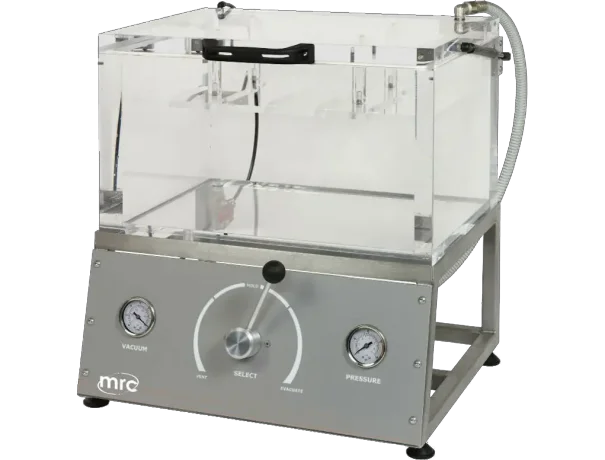

The impermeability test using bubble detection in water is a simple yet effective method to check for leaks in inflatable bags and sealed packages. Here's a step-by-step guide on how the test works:
Step-by-Step Procedure
Preparation:
Equipment Needed: A container filled with water (large enough to fully submerge the test item), an air pump or source to inflate the bag or package, and a pressure gauge if precise inflation pressure is required.
Setup: Ensure the water container is clean and free from any contaminants that could obscure the observation of bubbles.
Inflation:
Inflate the Item: Use the air pump to inflate the bag or package to its normal operating pressure. If the test item is a package, ensure it is sealed as it would be in normal use.
Pressure Check: Verify that the item is inflated to the appropriate pressure using a pressure gauge if necessary.
Submersion:
Immerse the Item: Carefully submerge the inflated bag or package into the water. Make sure it is fully immersed and not floating on the surface.
Stabilization: Hold the item steady under the water to prevent movement, which could cause air pockets and false indications of leaks.
Observation:
Watch for Bubbles: Closely observe the submerged item for the presence of air bubbles. Air bubbles escaping from the item indicate the presence of a leak.
Location and Size: Note the location and size of any bubbles. Large, continuous bubbles indicate a significant leak, while small, occasional bubbles may indicate a minor leak.
Recording Results:
Document Findings: Record the location, size, and frequency of bubbles observed. This documentation helps in identifying the severity and exact location of leaks.
Pass/Fail Criteria: Based on the industry standards or specific requirements, determine if the item passes or fails the impermeability test.
Applications and Benefits
Food Industry: Ensures food packaging is airtight, preventing spoilage and contamination.
Medical Devices: Verifies the sterility and integrity of medical packaging.
Pharmaceuticals: Protects contents from moisture and air, ensuring efficacy and safety.
Consumer Goods: Confirms the durability and quality of packaging for electronics, textiles, and more.
Industrial Use: Tests components that must remain airtight in automotive, aerospace, and other industrial applications.
Advantages
Simplicity: The test is easy to perform with minimal equipment.
Cost-Effective: Inexpensive compared to more complex testing methods.
Immediate Results: Leaks are visible immediately, allowing for quick assessment.
Limitations
Sensitivity: May not detect extremely small leaks. Complementary methods may be needed for critical applications.
Subjectivity: Relies on visual inspection, which can vary with the operator's experience and conditions.
Environmental Factors: Water temperature and pressure consistency are crucial for accurate results.
