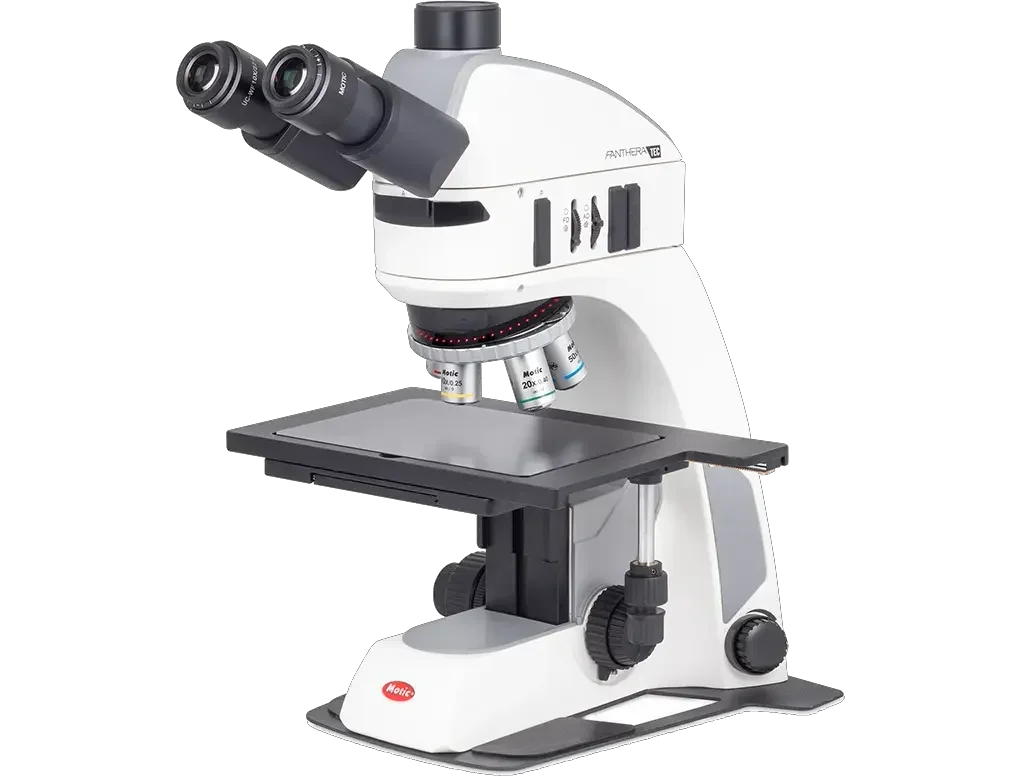

      Panthera TEC-BD Erect Image w/ 6x4 Stage

      Trinocular head Siedentopf type 25° inclined (split 50:50) Interpupillary distance 48-75mm Widefield high eyepoint eyepiece UC-WF10x/22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) Reversed quintuple nosepiece with Brightfield & Darkfield, coded Plan Achromat BD objectives : 5X/0.13, 10X/0.25, 20X/0.40, Plan S-Apo BD objectives : 50X/0.80 Stage 6”x 4” stage (150X100mm movement range and a stage area 300X180mm) Coaxial coarse and fine focusing system with tension adjustment LED condener 3W LED Compact EpiBD intermediate with smart segmental ring light Motic Light Tracer, Light memory, sleep mode, nosepiece LED light intensity Universal power supply 100-240V power cord, Allen hexagonal key, vinyl dust cover
      READ MORE >
        CATALOG NUMBER: 1100104601072
        $0
        • TECHNICAL DATA
        • FUNCTIONS
        • DESCRIPTION
        • ACCESSORIES
        • VIDEOS
        • DOCUMENTATION
        • DOWNLOAD
        • REQUEST A QUOTE
        Trinocular head Siedentopf type 25° inclined (split 50:50) Interpupillary distance 48-75mm Widefield high eyepoint eyepiece UC-WF10x/22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) Reversed quintuple nosepiece with Brightfield & Darkfield, coded Plan Achromat BD objectives : 5X/0.13, 10X/0.25, 20X/0.40, Plan S-Apo BD objectives : 50X/0.80 Stage 6”x 4” stage (150X100mm movement range and a stage area 300X180mm) Coaxial coarse and fine focusing system with tension adjustment LED condener 3W LED Compact EpiBD intermediate with smart segmental ring light Motic Light Tracer, Light memory, sleep mode, nosepiece LED light intensity Universal power supply 100-240V power cord, Allen hexagonal key, vinyl dust cover

        TECHNICAL DATA

          FUNCTIONS

          DESCRIPTION

          Trinocular head Siedentopf type 25° inclined (split 50:50) Interpupillary distance 48-75mm Widefield high eyepoint eyepiece UC-WF10x/22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) Reversed quintuple nosepiece with Brightfield & Darkfield, coded Plan Achromat BD objectives : 5X/0.13, 10X/0.25, 20X/0.40, Plan S-Apo BD objectives : 50X/0.80 Stage 6”x 4” stage (150X100mm movement range and a stage area 300X180mm) Coaxial coarse and fine focusing system with tension adjustment LED condener 3W LED Compact EpiBD intermediate with smart segmental ring light Motic Light Tracer, Light memory, sleep mode, nosepiece LED light intensity Universal power supply 100-240V power cord, Allen hexagonal key, vinyl dust cover

          ACCESSORIES

          VIDEOS

          DOCUMENTATION

          DOWNLOAD

          REQUEST A QUOTE

          Specifications
