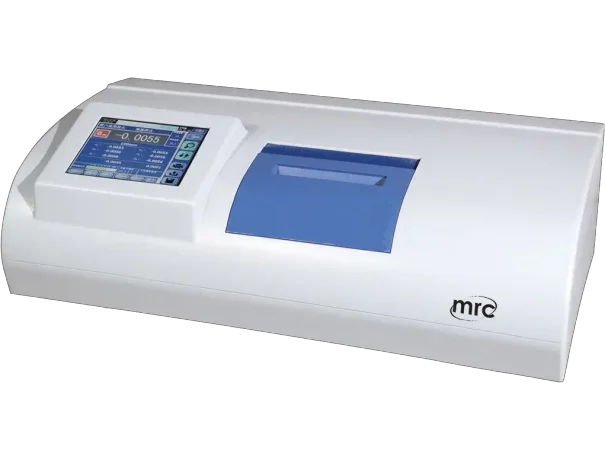

Polarimeter: A Complete Guide

A polarimeter is a scientific instrument used to measure the angle of rotation caused when plane-polarized light passes through an optically active substance. This measurement—known as optical rotation—is a critical parameter in chemistry, pharmaceuticals, food processing, and various fields of research.

Compounds with chiral molecules, such as sugars, amino acids, and certain drugs, can rotate polarized light either to the right (dextrorotatory) or to the left (levorotatory). The polarimeter quantifies this rotation, allowing scientists to determine concentration, purity, and even structural details about the molecules.

This guide covers everything you need to know about polarimeters, from working principles to modern applications.

What Is a Polarimeter?

A polarimeter is an optical instrument designed to measure the rotation of polarized light as it travels through an optically active substance. The amount of rotation depends on:

• The chemical nature of the substance
• The concentration of the substance in solution
• The length of the path through which light travels
• The wavelength of the light
• The temperature of the sample

By analyzing these factors, researchers can extract valuable chemical information.

The Science Behind Optical Rotation

Polarized Light

Ordinary light vibrates in multiple directions. A polarizer converts it into plane-polarized light—vibrations confined to a single direction.

Interaction With Optically Active Substances

When polarized light enters a solution of a chiral compound, its plane of vibration rotates. The angle of rotation is measured by the polarimeter.

• Dextrorotatory compounds (+, d-) rotate light clockwise.
• Levorotatory compounds (–, l-) rotate light counterclockwise.

This distinction is crucial in industries like pharmaceuticals, where enantiomers (mirror-image molecules) can have vastly different biological effects.

Components of a Polarimeter

A standard polarimeter consists of several key parts:

1. Light Source
   Traditionally, sodium lamps emitting monochromatic light (589 nm) were used. Today, high-intensity LEDs are preferred due to energy efficiency and stability.
2. Polarizer
   Converts ordinary light into plane-polarized light.
3. Sample Tube
   Holds the optically active substance. Standard lengths are 100 mm or 200 mm, but variable lengths are available for different concentrations.
4. Analyzer
   A second polarizing element that measures the rotated plane of light after passing through the sample.
5. Detector & Scale
   Older polarimeters used visual alignment, while modern instruments employ photodiodes or CCD sensors to detect and display rotation angles digitally.
6. Temperature Control System (Peltier)
   Temperature significantly affects optical rotation. Many modern polarimeters integrate Peltier systems for precise temperature regulation.

Key Terms in Polarimetry

Observed Rotation (α)

The actual angle measured by the polarimeter.

Specific Rotation ([α])

A normalized value that accounts for path length, concentration, and wavelength, allowing comparisons across experiments.
Formula:

[α]=αl⋅c[\alpha] = \frac{\alpha}{l \cdot c}[α]=l⋅cα

Where:

• α = observed rotation
• l = path length in decimeters
• c = concentration in g/mL

Accuracy

Indicates the closeness of measured values to true values (e.g., ±0.01°). High accuracy is critical in pharmaceutical applications.

Types of Polarimeters

1. Manual Polarimeters
• Operated visually by aligning fields of view.
• Cost-effective but less precise.
2. Digital Polarimeters
• Use photodetectors and display readings automatically.
• High accuracy, reproducibility, and easy data export.
3. Automatic Polarimeters
• Fully automated measurement with advanced optics, multiple wavelengths, and temperature control.
• Widely used in pharmaceutical, food, and chemical industries.

Factors Affecting Measurement

1. Wavelength of Light
   Optical rotation depends on light wavelength. Standard: sodium D-line at 589 nm.
2. Path Length of Sample Tube
   Longer tubes increase rotation angle proportionally.
3. Concentration of Solution
   Higher concentration = greater rotation.
4. Temperature
   Even small temperature variations can significantly alter results.
5. Purity of Substance
   Impurities may distort measurements, making purification essential.

Applications of Polarimeters

1. Pharmaceutical Industry

• Determining enantiomeric purity of drugs.
• Ensuring compliance with strict regulatory standards (FDA, EMA).
• Quality control in drug synthesis.

2. Food and Beverage Industry

• Measuring sugar content in juices, honey, and wine.
• Detecting adulteration in syrups.
• Ensuring compliance with international sugar trade standards.

3. Chemical Industry

• Analyzing purity of raw materials.
• Studying reaction kinetics of chiral compounds.

4. Academic and Research Laboratories

• Investigating chiral molecules in organic chemistry.
• Biochemical studies on amino acids, proteins, and enzymes.

5. Essential Oils and Fragrances

• Determining authenticity of natural oils.
• Quality control in perfumery.

Modern Advances in Polarimetry

1. LED Light Sources
   More stable, energy-efficient, and long-lasting than sodium lamps.
2. Automatic Data Logging
   Integration with computers for real-time data storage and analysis.
3. Multi-Wavelength Measurements
   Enables dispersion studies across UV, visible, and IR ranges.
4. Digital Temperature Control
   Peltier elements ensure ±0.1 °C accuracy.
5. User-Friendly Interfaces
   Touchscreen controls, preloaded methods, and automated calibration.

Advantages of Polarimeters

• Non-destructive analysis
• High precision and reproducibility
• Suitable for both liquids and solutions
• Fast measurement (often under a minute)

Limitations

• Cannot analyze achiral compounds
• Requires pure samples and solvents
• Sensitive to environmental conditions (temperature, light interference)

Calibration and Maintenance

Calibration

• Use standard quartz control plates with known rotations.
• Regular calibration ensures reliable results.

Maintenance

• Clean sample tubes thoroughly after use.
• Replace light sources periodically in older models.
• Store instruments in dust-free, stable environments.

Step-by-Step Procedure for Using a Polarimeter

1. Calibrate instrument with a standard solution or quartz plate.
2. Fill the sample tube with the solution (no air bubbles).
3. Insert tube into polarimeter chamber.
4. Adjust analyzer (manual) or let the digital detector record rotation.
5. Record observed rotation (α).
6. Calculate specific rotation using formula.
7. Compare with reference values for identification or purity check.

Example in Practice

A chemist wants to determine the purity of a glucose sample.

• Path length: 1 dm
• Concentration: 0.1 g/mL
• Observed rotation: +5.2°

[α]=+5.21×0.1=+52°[\alpha] = \frac{+5.2}{1 \times 0.1} = +52°[α]=1×0.1+5.2=+52°

The value matches reference literature, confirming sample purity.

Future of Polarimetry

With growing emphasis on chirality in drug design, polarimetry remains vital. Advances in automation, AI integration, and portable polarimeters are expanding applications, especially in field testing for food authenticity and pharmaceutical quality checks.
