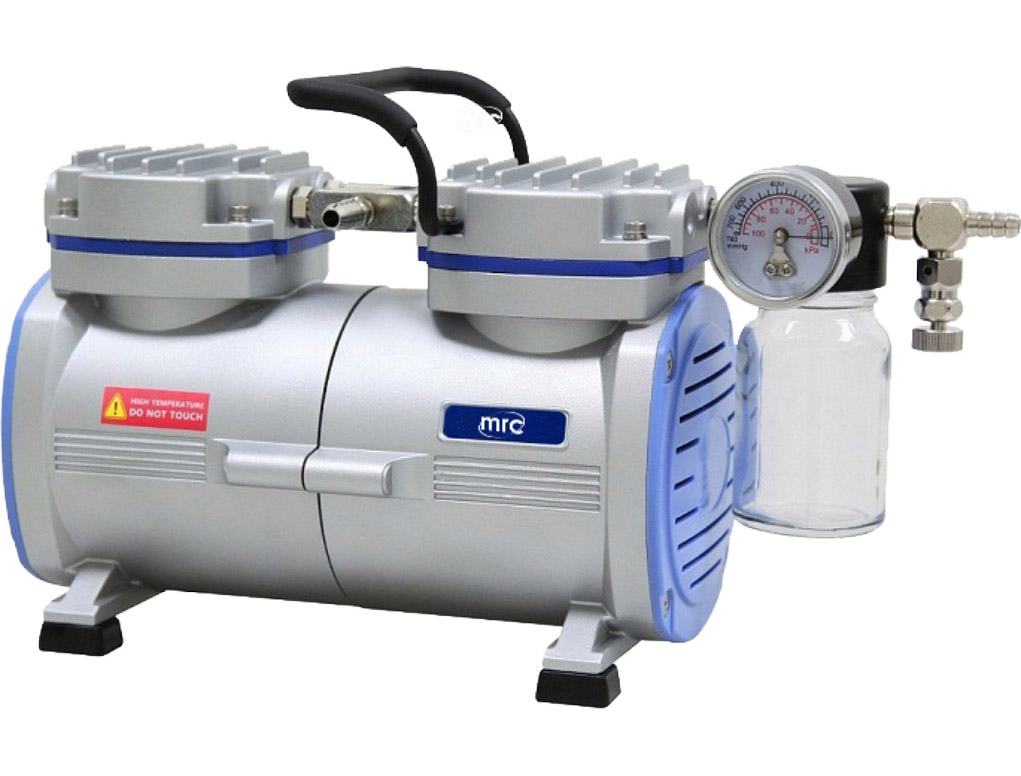

      PTFE Coated Chemical Resistant Vacuum Pump,31L/min,99mbar

      PTFE Coated Chemical Resistant Vacuum Pump 34 liter/min 106mbar 3

      PTFE Coated Chemical Resistant Vacuum Pump 34 liter/min 106mbar 3

      PTFE Coated Chemical Resistant Vacuum Pump
      Oil free
      Power 80watt 1/6 horsepower
      34liter/minute,99miliibar,110torr,-650mmHg,85.5kPa
      Port thread 5/16"
      Eternal dimensions:216*186*165mm
      weight 5.2kg
      Include moisture trap and vacuum regulator
      Overheat protector
      Low noise
      READ MORE >
      • Type: Piston Pump
      CATALOG NUMBER: VP-34C
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Type
      Piston Pump
      Max. Flow (l/min)
      34
      Vac. Pressure (mbar)
      106
      PTFE Coated Chemical Resistant Vacuum Pump
      Oil free
      Power 80watt 1/6 horsepower
      34liter/minute,99miliibar,110torr,-650mmHg,85.5kPa
      Port thread 5/16"
      Eternal dimensions:216*186*165mm
      weight 5.2kg
      Include moisture trap and vacuum regulator
      Overheat protector
      Low noise

      TECHNICAL DATA

        Type
        Piston Pump
        Max. Flow (l/min)
        34
        Vac. Pressure (mbar)
        106

      FUNCTIONS

      DESCRIPTION

      PTFE Coated Chemical Resistant Vacuum Pump
      Oil free
      Power 80watt 1/6 horsepower
      34liter/minute,99miliibar,110torr,-650mmHg,85.5kPa
      Port thread 5/16"
      Eternal dimensions:216*186*165mm
      weight 5.2kg
      Include moisture trap and vacuum regulator
      Overheat protector
      Low noise

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      DOWNLOAD

      REQUEST A QUOTE

      DIS-1-0235

      Straight connector for PP pumping, made by AZLON, size 7-10 mm

      DIS-1-0237

      Straight connector for PP pumping, made by AZLON, size 6-8 mm

      167300-20

      Hose Barb,1/8 PT, 6/16 in.(9.5mm) for VP-17/19

      Hose Barb,1/8 PT, 5/16 in.( 8mm)
      167300-21

      Hose Barb,1/8 PT, 5/16 in.( 8mm) For VP-17/34

      167300-23

      Hose Barb,1/8 PT, 3/16 in.(4.8mm) for VP-17/34

      167300-24

      Hose Barb,1/8 PT, 2/16 in.(3.2mm) for VP-17/34

      167300-63

      Hose Barb,1/8 PT, 1/4 in.(6.4mm)

      167300-25

      L type connector, 1/8 PT, 5/16 in.( 8mm) for VP-17/34

      189300-06

      Moisture Trap / Vacuum Regulator for VP-17C/34C

      169300-21

      Chemical resistant connector, 5/16 in. (8mm), 1/4 MPT

      169401-46

      Teflon connector
