Raman spectroscopy has evolved from a niche physical phenomenon into one of the most powerful and ubiquitous analytical techniques in the modern scientific and industrial landscape. By providing a non-destructive, chemical "fingerprint" of materials without requiring extensive sample preparation, Raman spectrometers have become indispensable tools across various sectors—from pharmaceutical manufacturing and semiconductor metrology to gemology and advanced materials research.
This comprehensive guide explores the foundational physics of the Raman effect, the precision engineering behind modern spectrometers, the profound contributions of British scientific institutions and companies to the field, and the practical applications that drive today's laboratory innovations. Whether you are outfitting a commercial laboratory, conducting cutting-edge academic research, or seeking to understand the mechanics of optical spectroscopy, this article provides the definitive overview of Raman spectrometers.
1. The Fundamental Physics: Understanding the Raman Effect
To understand a Raman spectrometer, one must first understand the quantum mechanical event it is designed to detect. When a beam of light interacts with a molecule, the vast majority of the photons undergo elastic scattering, known as Rayleigh scattering. In this process, the photons bounce off the molecules without any change in their energy, meaning the scattered light has the exact same wavelength and color as the incident light source.
However, a microscopic fraction of the light—approximately one in ten million photons—interacts with the electron cloud and the chemical bonds of the molecule in a different way. These photons transfer a small amount of energy to the molecule (or absorb a small amount from it), causing the molecule to enter a different vibrational or rotational state. Because energy must be conserved, the photon scatters with a different energy level, and consequently, a different wavelength. This is inelastic scattering, universally known as the Raman effect.
Stokes and Anti-Stokes Scattering
The Raman effect manifests in two distinct forms:
Stokes Shift: The incident photon transfers energy to the molecule, exciting it from a ground vibrational state to a higher energy state. The scattered photon leaves with less energy (a longer wavelength) than the incident light. This is the most common form of Raman scattering measured in commercial spectrometers because, at room temperature, most molecules rest in their ground state.
Anti-Stokes Shift: The molecule is already in an excited vibrational state and transfers energy to the incident photon as it relaxes back to the ground state. The scattered photon leaves with more energy (a shorter wavelength). Anti-Stokes scattering is much weaker than Stokes scattering but can be used in specialized applications, such as determining the absolute temperature of a sample.
The energy difference between the incident light and the scattered light is called the Raman shift, typically measured in wavenumbers ($cm^{-1}$). Because specific chemical bonds (like carbon-carbon double bonds or metal-oxygen bonds) vibrate at very specific frequencies, the resulting spectrum of Raman shifts creates a highly specific molecular fingerprint. No two distinct molecules share the exact same Raman spectrum.
The Wavelength Dependency Rule
A critical principle in Raman spectroscopy is that the intensity of the scattered light is highly dependent on the excitation wavelength. The relationship is governed by the following physical law:
$$I \propto \frac{1}{\lambda^4}$$
Where $I$ is the scattering intensity and $\lambda$ is the wavelength of the incident laser. This means that shorter wavelengths (like ultraviolet or green visible light) generate a significantly stronger Raman signal than longer wavelengths (like near-infrared). However, as we will explore in the engineering section, shorter wavelengths are also much more likely to trigger autofluorescence in the sample—a blinding emission of light that can easily overpower the delicate Raman signal.
2. Anatomy of a Modern Raman Spectrometer
A modern Raman spectrometer is a triumph of optical engineering, requiring the precise alignment of several highly specialized components to detect a signal that is inherently incredibly weak. The system must deliver intense light, collect scattered light, filter out the overwhelming Rayleigh scatter, and accurately separate the remaining light into a measurable spectrum.
The Excitation Source: High-Intensity Lasers
Because the Raman effect is so rare, a highly intense, monochromatic (single-wavelength) light source is required to generate enough inelastically scattered photons to measure. Today, this is achieved exclusively using continuous-wave (CW) lasers. The choice of laser dictates the entire optical design of the spectrometer. Common choices include:
532 nm (Green): Offers a strong Raman signal due to the $\lambda^{-4}$ rule, making it excellent for inorganic materials, carbon structures (like graphene), and surface-enhanced techniques.
785 nm (Near-Infrared): The industry workhorse. It provides an optimal balance between generating a decent Raman signal and minimizing the risk of triggering sample fluorescence, making it the standard for pharmaceuticals and organic chemicals.
1064 nm (Infrared): Used for highly fluorescent biological samples or dark dyes. While the Raman signal is exceptionally weak, the complete suppression of fluorescence makes it the only viable option for certain organic compounds.

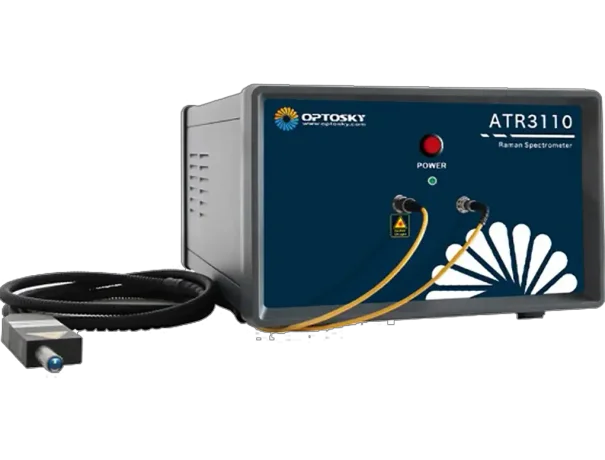

The Sample Interface and Collection Optics
Once the laser illuminates the sample, the scattered light must be collected. In a standard benchtop or process spectrometer, this is often done via fiber-optic probes. In a Raman microscope, high numerical aperture (NA) objective lenses are used to focus the laser down to a spot as small as 1 micrometer ($\mu m$) and collect the backscattered light over a wide angle.
Optical Filtering: The Rayleigh Rejection
The most critical engineering challenge in a Raman spectrometer is "laser rejection." Because the elastic Rayleigh scatter is millions of times brighter than the Raman scatter, it must be completely blocked before it reaches the detector, lest it saturate the sensor. Modern instruments rely on advanced holographic notch filters or edge-pass dichroic filters. These filters are engineered with incredibly steep optical density transitions, capable of blocking 99.9999% of the laser wavelength while allowing light that is shifted by just a few nanometers to pass through freely.
The Dispersion System and Detector
The filtered light, now consisting purely of the Raman signal, enters the spectrograph. Here, a diffraction grating—a precisely mirrored surface etched with thousands of microscopic grooves per millimeter—disperses the light into its constituent wavelengths, much like a prism splitting white light into a rainbow.
Finally, the dispersed light strikes the detector. Modern Raman spectrometers almost universally utilize Charge-Coupled Devices (CCDs) cooled to temperatures well below freezing (often -60°C or lower) using thermoelectric Peltier coolers. Cooling the detector drastically reduces "dark noise" (thermal electrons jumping into the sensor pixels), allowing the instrument to accurately measure the exceedingly faint Raman scattered photons over integration times ranging from milliseconds to several minutes.
3. The British Connection: A Legacy of Optical Innovation
While the Raman effect is named after the eminent Indian physicist Sir C.V. Raman (who won the 1930 Nobel Prize in Physics for his discovery), the history and commercial maturation of Raman spectroscopy are deeply intertwined with British scientific institutions and engineering firms. The UK has served as a global epicenter for the transition of Raman spectroscopy from an obscure physics experiment to a commercial industrial tool.
Historical Ties and the Royal Society
Sir C.V. Raman’s groundbreaking work on inelastic light scattering was communicated to the world heavily through British scientific channels. His foundational paper, "A New Type of Secondary Radiation," was published in the journal Nature (based in London) in 1928. Furthermore, Raman was elected a Fellow of the Royal Society of London in 1924, and the rigorous scientific discourse facilitated by British institutions helped validate and proliferate the understanding of the Raman effect globally.
Renishaw plc: Revolutionizing the Commercial Market
When discussing the modern commercialization of Raman spectrometers, it is impossible to ignore the massive impact of Renishaw, a global engineering and scientific technology company headquartered in Gloucestershire, United Kingdom.
Before the early 1990s, Raman spectrometers were massive, room-filling arrays of lasers, optics, and photomultiplier tubes. They required highly trained physicists just to keep the optics aligned. In 1992, Renishaw released the first compact, benchtop Raman microscope. By integrating high-performance notch filters and advanced CCD technology, the British firm dramatically reduced the size, complexity, and cost of Raman instruments.
Today, Renishaw’s Spectroscopy Division remains a recognized global leader. Their flagship inVia™ confocal Raman microscope is considered a gold standard in academic and industrial laboratories worldwide. Renishaw’s engineering approach—focusing on robust, modular systems that can swap laser wavelengths and gratings on the fly without manual realignment—has earned them numerous Queen’s Awards for Enterprise. Their sustained innovation in the UK continues to drive the adoption of Raman technology in fields like semiconductor manufacturing, where their tools are used to measure microscopic stresses in silicon wafers.
SORS: A Breakthrough from the Rutherford Appleton Laboratory
Another monumental British contribution to the field is Spatially Offset Raman Spectroscopy (SORS). Developed in the early 2000s by Professor Pavel Matousek and his team at the Science and Technology Facilities Council’s (STFC) Rutherford Appleton Laboratory in Oxfordshire, SORS revolutionized how Raman spectroscopy could be applied in the real world.
Traditional Raman spectroscopy struggles with opaque or layered materials; the laser signal is overwhelmed by the surface container (like a plastic bottle or a pill coating). The British team at STFC discovered that by taking Raman measurements at spatial distances offset from the exact point of laser illumination, they could mathematically separate the spectrum of the surface container from the spectrum of the concealed contents.
This UK-born technology led to the creation of handheld SORS spectrometers capable of identifying liquid explosives inside sealed opaque bottles at airport security checkpoints, and verifying the chemical composition of pharmaceutical powders directly through their thick plastic sacks in warehouse receiving bays. The technology was so successful that it spun out into a dedicated company, Cobalt Light Systems (later acquired by Agilent), cementing the UK's status as a powerhouse in spectroscopic innovation.
4. Advanced Modalities of Raman Spectroscopy
As the core technology has matured, engineers have developed advanced variations of the Raman spectrometer to overcome inherent limitations, such as spatial resolution limits and weak signal intensity.
| Modality | Core Mechanism | Primary Benefit |
| Confocal Raman Microscopy (CRM) | Uses a spatial pinhole to eliminate out-of-focus light from the sample. | Allows for 3D chemical mapping with depth resolution down to ~2 $\mu m$. |
| Surface-Enhanced Raman (SERS) | Analyzes samples adsorbed onto rough metal nanostructures (usually gold or silver). | Amplifies the Raman signal by factors of $10^4$ to $10^6$, enabling trace detection. |
| Spatially Offset Raman (SORS) | Collects scattered light millimeters away from the excitation point. | Scans deep beneath opaque surfaces, packaging, or biological tissue without opening them. |
| Tip-Enhanced Raman (TERS) | Combines an Atomic Force Microscope (AFM) with a Raman spectrometer. | Breaks the optical diffraction limit, mapping chemical structures at the nanoscale. |
5. Industrial and Scientific Applications
Raman spectrometers have transitioned out of pure chemistry departments and into QA/QC labs, manufacturing floors, and clinical settings. Their ability to deliver rapid, non-destructive insights makes them uniquely suited for complex analytical challenges.
Materials Science and Carbon Nanomaterials
Raman spectroscopy is arguably the most important analytical technique for characterizing carbon allotropes. For materials like graphene and carbon nanotubes, a Raman spectrometer can determine not just the chemical identity, but the structural integrity. The ratio of the specific "G band" to the "D band" in the Raman spectrum instantly tells an engineer how many defects exist in the carbon lattice. Furthermore, the shape of the "2D band" can definitively prove whether a manufacturer has successfully produced single-layer graphene or bulk graphite.
Pharmaceutical Manufacturing and Quality Control

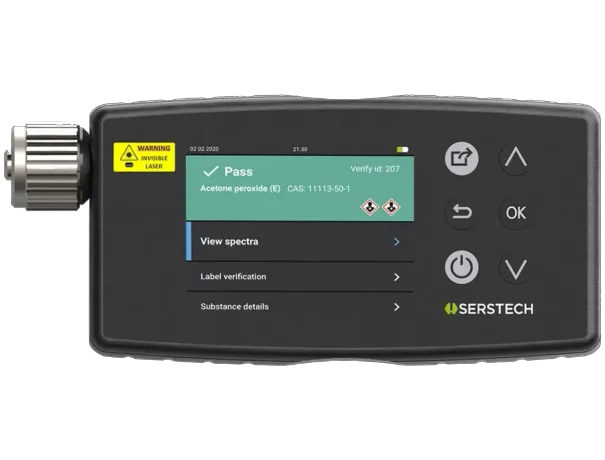

In the pharmaceutical industry, ensuring that an Active Pharmaceutical Ingredient (API) is evenly distributed throughout a tablet is critical for patient safety. Raman microscopes can rapidly scan the surface of a cross-sectioned pill, generating a false-color chemical map that shows exactly where the API, binders, and excipients are located. Handheld Raman spectrometers are also routinely deployed on loading docks to verify the identity of raw chemical ingredients in seconds, directly through transparent or semi-transparent packaging, eliminating the need to open drums in sterile environments.
Semiconductor and Microelectronics
As microchips become smaller and more complex, internal physical stresses can cause catastrophic failures in electronic devices. When a silicon crystal lattice is compressed or stretched, the distance between its atoms changes slightly. This changes the vibrational frequency of the bonds, which a high-resolution Raman spectrometer can detect as a minute shift in the Raman peak position (often less than 0.1 $cm^{-1}$). Engineers use this data to map strain fields across silicon wafers at the micrometer scale, optimizing manufacturing parameters to increase chip yields.
Art, Gemology, and Archeology
Because the technique is entirely non-destructive, Raman spectrometers are heavily utilized by museums and gemologists. A quick laser scan can distinguish a natural diamond from a lab-grown synthetic stone, or detect polymer treatments used to hide flaws in emeralds. In art conservation, portable Raman units analyze the specific mineral pigments used in Renaissance paintings, helping curators authenticate works and detect anachronistic modern paints used by forgers.
6. Configuring a System for Commercial Success
When procuring a Raman spectrometer for an industrial or commercial laboratory, careful configuration is required to ensure the system meets specific analytical demands. The most crucial decision is laser wavelength selection.
The Fluorescence Battle: If your facility analyzes heavy organic compounds, polymers, or biological materials, fluorescence is your primary enemy. Investing in a 785 nm or 1064 nm excitation system is mandatory. A 532 nm system, while theoretically yielding a stronger signal, will often render organic data useless.
Spectral Resolution: For tasks like differentiating closely related polymorphs in pharmaceuticals or measuring subtle stresses in semiconductors, high spectral resolution (the ability to distinguish between peaks separated by only a few wavenumbers) is required. This necessitates spectrometers with longer focal lengths and high-density diffraction gratings (e.g., 2400 lines/mm).
Automation and Software: Modern industrial laboratories rely on high throughput. Selecting systems with automated particle analysis software, motorized XYZ stages for large-area mapping, and compliance with data integrity standards (like FDA 21 CFR Part 11) is just as critical as the hardware itself.
