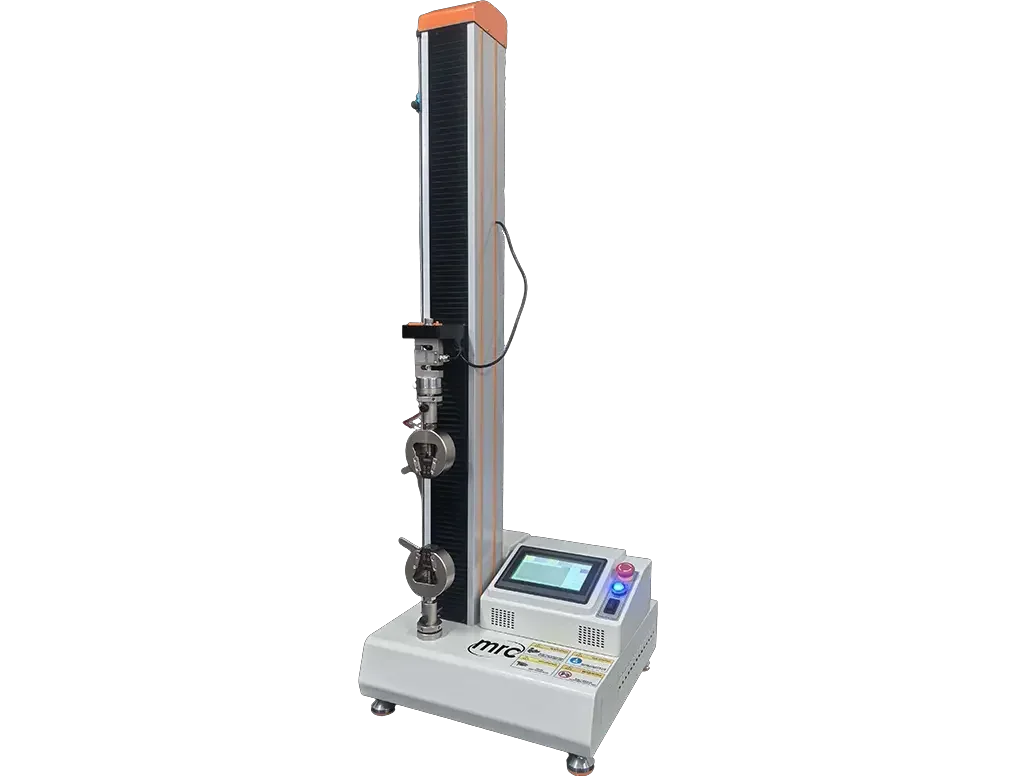

Universal Material Tensile Testing Machine
Quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Specifications:
(1000N)Capacity 100kg
Stroke: 450mm(excluding clamp)
Range of speed: 15~500mm/min
Effective testing space: 110mmMAX
Accuracy: ±1%
Operation method: Windows operation
Motor: AC motor
Optional accessories: stretcher, air clamp
Resolution: 1/10,000
Weight: 75kg
Dimention: 41×37×100cm(W×D×H)
Power: 1PH, AC220V, 50/60Hz
