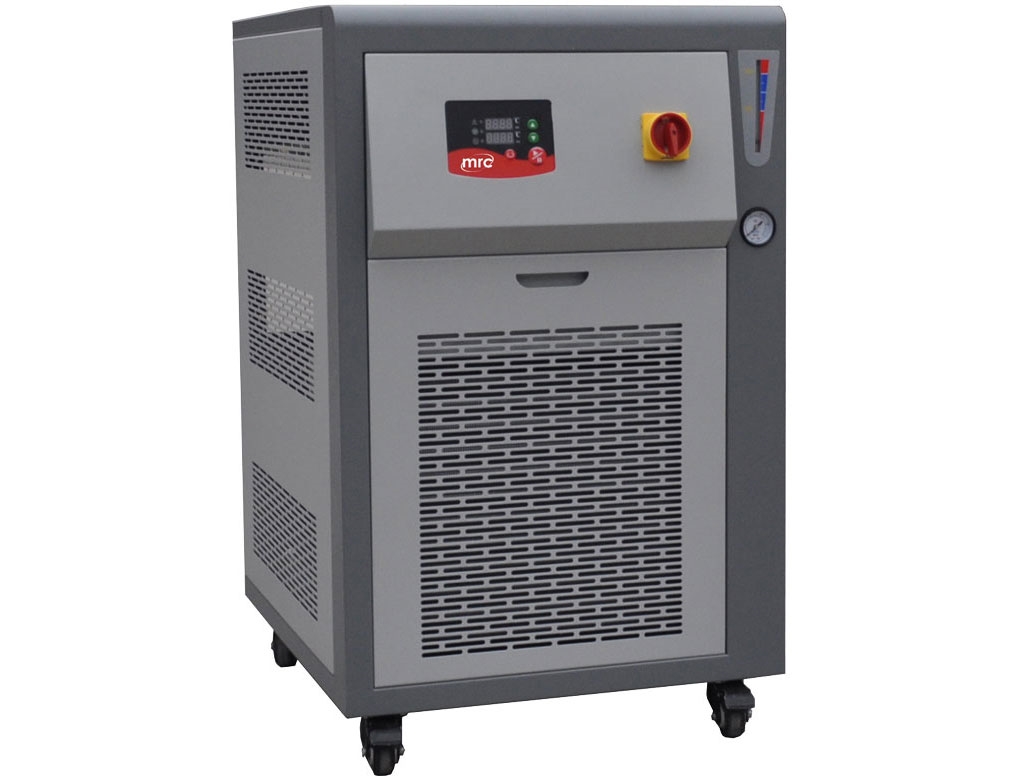

TypeAir-cooled integrated chiller
Control methodON-OFF
Temperature Stability±1∘C
Temperature Range5∼35∘C
Nominal cooling capacity1.8 KW
Reservoir20 L
Max pump flow60 L/min
Max pump pressure4.3 Bar
Pump rated
[email protected] L/min@Bar
Outlet sizeRp 1/2
ControllerA03
Standard power supply220V/50Hz
Rate power1.5 KW
Current6.82A
Noise55 db
Dimensions (W x D x H)420x520x720 mm
