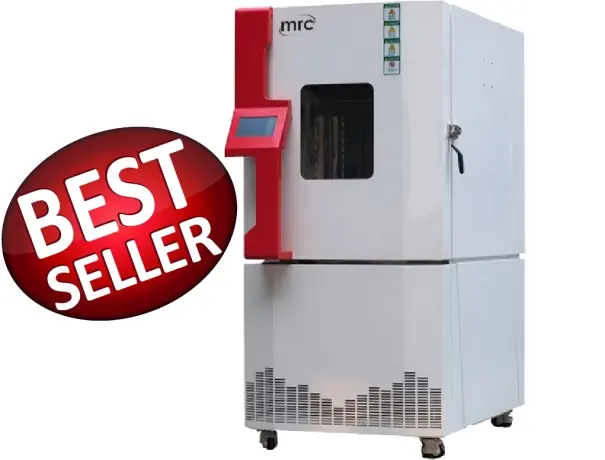

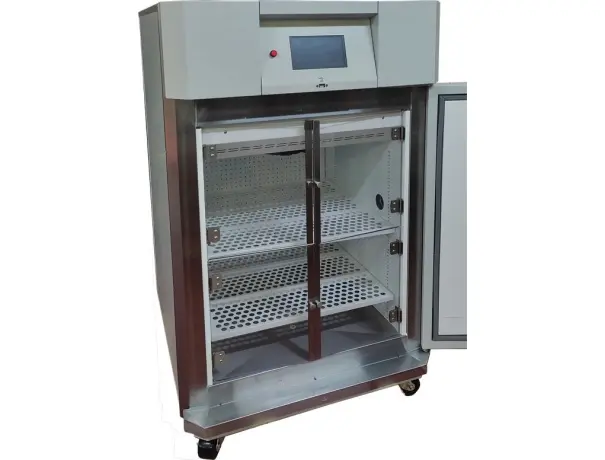

Environmental chambers are advanced control systems designed to simulate a wide range of environmental conditions—such as temperature, humidity, light, and in some cases, specific gases—in order to perform precise experiments, quality testing, and R&D across scientific and industrial fields. Humidity Chambers are essential tools in many laboratories, enabling tight control over environmental parameters.
Main Applications of Environmental Chambers
Environmental chambers are widely used in various sectors. Here are some of the main use cases:
1. Pharmaceutical and Biotechnology Industries
Used for storage and stability testing of drugs, vaccines, and biological preparations under controlled temperature and humidity conditions, complying with standards like ICH.
2. Microbiology and Molecular Biology
Used in sterile conditions, sometimes in anaerobic environments (Anaerobic Chambers), to grow sensitive bacteria or cells, or to conduct biological reactions under precise conditions.
3. Electronics and Electro-Optics Industries
Testing the durability of electronic components under extreme temperature and humidity conditions, as part of product development or quality assurance processes.
In the electronics field, devices and components are exposed to varying environmental stressors: heat, humidity, radiation, magnetic fields, and more. Environmental chambers are an integral part of the quality control and R&D process, allowing simulation of real-world conditions in the lab.
Key Applications:
- Thermal testing of electronic components:
Testing of printed circuit boards (PCBs), SMT components, chips, sensors, etc., under extreme temperatures (e.g., -40°C to +125°C) to evaluate behavior, durability, and material aging. - Combined temperature and humidity testing (HAST/THB):
Accelerated humidity and heat testing to detect early potential failures, especially in plastic-encased components or multilayer PCBs. - Electro-optics (EO) and optoelectronics:
Chambers are used to test laser systems, thermal cameras, fiber optics, or infrared devices under varying thermal conditions or controlled radiation levels. - Thermal cycling (rapid temperature changes):
Sharp heating/cooling cycles – for example, from 0°C to 80°C within minutes – to evaluate solder joints, epoxy/glue layers, and material interfaces. - Long-term reliability and lifetime testing:
Simulating years of usage within a few days using accelerated environmental stress profiles.
4. Materials Science and Polymer Research
Testing material resistance to harsh environmental conditions, including thermal cycling, freeze-thaw testing, accelerated aging, and more.
5. Automotive and Aerospace Industries
Environmental stress testing for mechanical parts, rubber, plastics, or full assemblies—simulating real-world field conditions.
These industries demand the highest levels of reliability, as failure of a single component or system could be critical. Environmental chambers are used here as engineering and research tools for design, validation, and verification of both components and complete systems.
Common Applications:
- Durability testing of plastics, rubber, and metal components
For example: dashboards, wiring, insulation, HVAC systems, etc.—tested under intense heat, cold, and humidity variations to simulate real-world driving or flight conditions. - Cyclic wetting/drying tests (Moisture Cycling)
Simulating driving through varying climates: extreme temperatures + high humidity + vibration—to detect corrosion, condensation buildup, and electrical shorts. - Testing of control panels and electronics
Chambers are used to assess the performance of onboard electronic systems in vehicles/aircraft—displays, ECUs, navigation units—under shocks and abrupt climate changes. - Composite material testing
In aerospace and space industries, materials such as carbon/epoxy composites are tested under high temperatures, dryness, UV exposure, and oxidation to evaluate aging and performance across multiple flight cycles. - Compliance with strict standards
For example: - IEC 60068 – General environmental testing
- RTCA DO-160 – Aerospace standard
- MIL-STD-810 – U.S. military environmental testing standard
- ISO 16750 – Automotive environmental testing standard
Operating Ranges – Temperature, Humidity, Pressure & More
Environmental chambers come in various configurations depending on the specific application. Below are typical ranges:
| Parameter | Standard Range | Extended Range |
| Temperature | -20°C to +180°C | -80°C to +300°C |
| Relative Humidity | 20%–98% RH | As low as 10% or above 98% (depending on sensors) |
| Pressure (if relevant) | Standard atmospheric | Vacuum or overpressure (in vacuum/gas chambers) |
| Gaseous Environment | Neutral air | With nitrogen, CO₂, controlled oxygen, hydrogen (carefully), etc. |
Advanced Options
When selecting an environmental chamber, several optional features can enhance usability and performance:
1. Programmer – Dynamic Profile Control
A control system with software or interface that allows setting up dynamic temperature/humidity profiles over time.
Example: gradual increase from 10°C to 50°C over 2 hours, hold, then gradual decrease.
���� Enables simulation of real-world environmental changes or stress testing.
2. Access Ports (Wall Pass-Through Holes)
Openings on the chamber wall that allow cables, tubes, sensors, or probes to be inserted inside the chamber while maintaining airtight conditions.
⚙️ Common diameters: 25–100 mm. Usually equipped with a silicone plug for sealing.
3. Advanced Monitoring System
Real-time monitoring of parameters like temperature, humidity, gases, or pressure, including data logging, alerts (via SMS or email), and integration with GMP systems or 21 CFR Part 11 compliance.
���� Many systems include web interfaces, touchscreens, or RS232/USB/ETHERNET outputs.
4. Viewing Windows with Anti-Fog Heating
Allows observation of internal processes without opening the chamber—a key feature for labs conducting visual inspections during testing.
Key Considerations When Choosing an Environmental Chamber
When purchasing a new environmental chamber, keep the following in mind:
- Internal Volume: What chamber size is needed? (Typical range: 50–1000 liters).
- Response Time: How fast can the system reach the set conditions?
- Uniformity and Control Accuracy: What is the allowable deviation in temperature or humidity? (Typically ±0.5°C, ±3% RH).
- Maintenance and Cleaning: Is the chamber easy to maintain and clean?
- Compliance: Does it meet GMP/GLP, ICH guidelines, ISO, or FDA standards?
Standard for environmental Chambers:
Orm
Low: A Testing) -2423.1-2008GB (68-2-1IEC
method testing temperature
High: B Testing) -2423.2-2008GB (68-2-2IEC
method testing temperature
life temperature High) 360.8-87GJB (F-202STD-MIL
testing
method temperature High) 150.3GBJ (D-810STD-MIL
method temperature Low) 150.4GBJ (D810STD-MIL
moist Constant:Ca Testing) 2423.3-93GB (68-2-3IEC
heat testing method
moist Alternate : Db Testing) 2423.4-93GB (68-2-30IEC
heat testing method
testing heat Moist) 150.9-93GJB (D-810STD-MIL
.method
