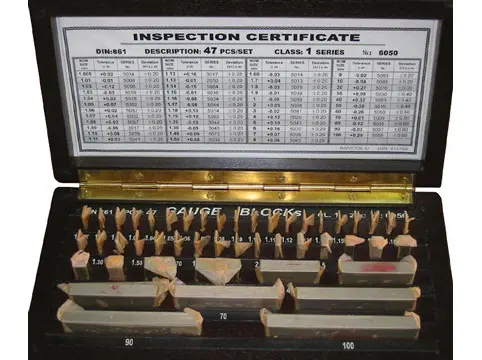

Gage Blocks

Gage blocks, also known as gauge blocks or Johansson blocks, are the backbone of precision measurement in industries and laboratories. These small, yet highly accurate blocks ensure the highest level of measurement precision, making them indispensable in machining, metrology, and quality control.These blocks are crafted to incredibly precise dimensions and can be stacked to create a range of measurements. They are used to calibrate measuring equipment and ensure accuracy in industrial processes.

Materials Used in Gage Blocks

Gage blocks are typically made from materials like:

• Steel – The most common, known for durability.
• Ceramic – Offers resistance to corrosion and wear.
• Tungsten Carbide – Extremely hard and wear-resistant.

Types of Gage Blocks

1. Steel Gage Blocks – Most common, providing excellent accuracy.
2. Ceramic Gage Blocks – Non-magnetic and resistant to corrosion.
3. Tungsten Carbide Gage Blocks – Harder and more wear-resistant.
4. Specialty Gage Blocks – Custom-designed for unique applications.

How Gage Blocks Work

Gage blocks are used by wringing them together, creating an almost molecular bond. This ensures minimal dimensional variation and maximum accuracy. When stacked, they provide precise measurements used to calibrate instruments.

Applications in Industry

• Manufacturing – Ensuring parts meet design specifications.
• Calibration – Used to set micrometers and calipers.
• Quality Control – Verifying measurement standards in production lines.

Applications in Laboratories

• Research – Used in scientific studies requiring high precision.
• Metrology – Establishing measurement standards.
• Traceability – Ensuring measurements align with national standards.

Gage Block Grades and Accuracy

Gage blocks are classified by grade:

• Grade 0 – Highest accuracy, used in laboratories.
• Grade 1 – For inspection purposes.
• Grade 2 – Common for workshop use.

Proper Usage and Care

• Handling – Use gloves to prevent oil contamination.
• Storage – Keep in protective cases.
• Cleaning – Wipe with lint-free cloths and ethanol.
