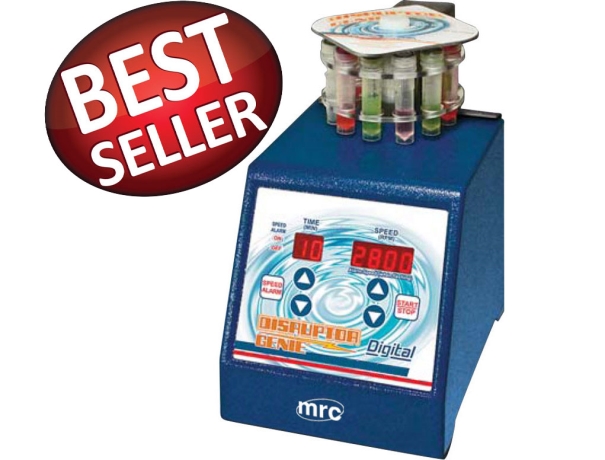

A ball mill homogenizer is a laboratory and industrial device used to grind, mix, and homogenize samples using grinding balls and controlled motion. Think of it as a powerful blender for solids, powders, and suspensions, but instead of blades, it relies on impact and friction.
Why Ball Mill Homogenization Matters
Uniform particle size is critical in research, pharmaceuticals, food processing, and materials science. Inconsistent particle size leads to unreliable results, poor solubility, and uneven reactions. A ball mill homogenizer solves this by delivering repeatable and controlled homogenization.
Components of a Ball Mill Homogenizer
Grinding Jars and Chambers
Grinding jars are the containers that hold your sample and milling balls. They come in different volumes and materials such as stainless steel, zirconia, agate, and PTFE. The choice directly affects contamination risk and grinding efficiency.
Milling Balls
Ball Materials
Common ball materials include stainless steel for high strength, zirconia for low contamination, agate for delicate samples, and tungsten carbide for extreme hardness.
Ball Size Selection
Small balls increase surface contact and fine grinding. Larger balls deliver higher impact energy. Many applications benefit from a mix of sizes.
Drive Mechanism and Speed Control
Modern ball mill homogenizers feature variable speed control, allowing precise adjustment of rotational or oscillation speed. Speed directly influences energy input and final particle size.
Applications of Ball Mill Homogenizers
Laboratory Research
Used in academic and industrial labs for sample preparation, nanomaterial synthesis, and analytical testing.
Pharmaceutical and Biotechnology Uses
Ball mill homogenizers support drug formulation, cell disruption, and uniform mixing of active ingredients. Companies like MRC LTD supply laboratory-grade ball mill homogenizers designed for regulated environments.
Food, Chemical, and Material Science Applications
From cocoa processing to pigments and ceramics, ball milling ensures consistent texture and performance.
Preparing to Use a Ball Mill Homogenizer
Sample Preparation Basics
Dry samples should be pre-crushed if large. Wet samples must be compatible with the jar material. Remove foreign objects and ensure consistent sample composition.
Choosing the Right Jar and Balls
Match jar material to sample chemistry. For example, avoid steel with corrosive samples. Select balls that balance hardness and contamination control.
Determining Ball to Sample Ratio
A typical ball to sample ratio ranges from 5:1 to 20:1 by weight. Higher ratios increase grinding efficiency but also heat generation.
Step by Step Guide on How to Use a Ball Mill Homogenizer
Loading the Sample
Place the sample into the grinding jar, then add milling balls. Never exceed the manufacturer’s recommended fill level.
Setting Milling Parameters
Speed
Start with moderate speed. Higher speeds increase energy but may cause overheating.
Time
Short cycles with pauses are better than one long run. This protects the sample and the equipment.
Direction and Cycles
Some homogenizers allow alternating rotation direction, improving mixing and reducing agglomeration.
Starting the Milling Process
Secure the jar, close safety covers, and start the run. Always stay within sight during initial tests.
Monitoring the Process
Check temperature, noise, and vibration. Unexpected changes signal incorrect settings or mechanical issues.
Achieving Optimal Homogenization Results
Preventing Overheating
Use intermittent milling, lower speed, or cooling breaks. Heat alters sensitive samples.
Avoiding Sample Contamination
Clean jars thoroughly and use dedicated sets for specific materials.
Improving Particle Size Uniformity
Experiment with ball size combinations and milling duration. Uniformity improves with controlled energy input.
Wet Milling vs Dry Milling
When to Use Wet Milling
Wet milling reduces heat and improves dispersion for biological and soft materials.
When to Use Dry Milling
Dry milling suits hard materials and applications requiring solvent-free processing.
Pros and Cons Comparison
Wet milling offers better temperature control. Dry milling provides faster processing and simpler cleanup.
