At its core, a thermocouple operates on the principle of thermoelectricity, generating voltage in response to temperature variations. Various types of thermocouples exist, each with unique characteristics and applications.
What are Thermocouples
Thermocouples are temperature sensors that generate a voltage signal proportional to the temperature difference between two points.

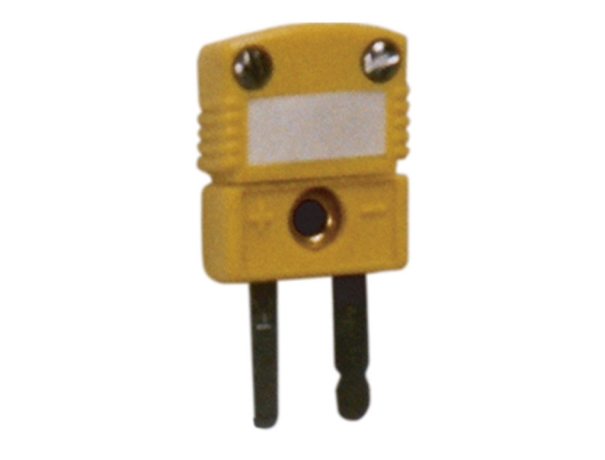

Type E Thermocouple
Type E thermocouples are a subset of thermocouples distinguished by their unique composition. Comprising a Nickel-Chromium (NiCr) positive leg and a Constantan (CuNi) negative leg, Type E thermocouples exhibit exceptional accuracy in specific temperature ranges. With a temperature range of -200 to 900 degrees Celsius, they find applications in environments where precision is paramount.

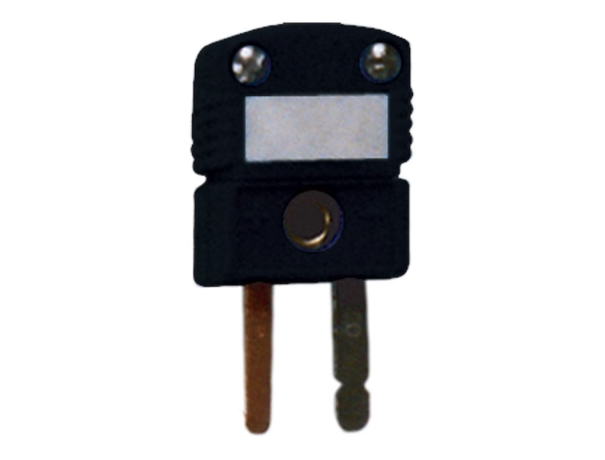

Type J Thermocouple
Type J thermocouples, known for their versatility, possess distinct features that set them apart. Their temperature range, material composition, and exceptional durability make them a preferred choice in various applications. Understanding these features is crucial for anyone working with thermocouple systems.Type J thermocouples excel in a temperature range from -210 to 1200 degrees Celsius, making them suitable for a broad spectrum of industrial processes.
Type K Thermocouple
Type K thermocouples boast high accuracy and reliability. The combination of Nickel-Chromium and Nickel-Aluminum alloys not only ensures precision but also grants them resistance to corrosion—a crucial factor in harsh environments. The wide temperature range further enhances their applicability across different industries.

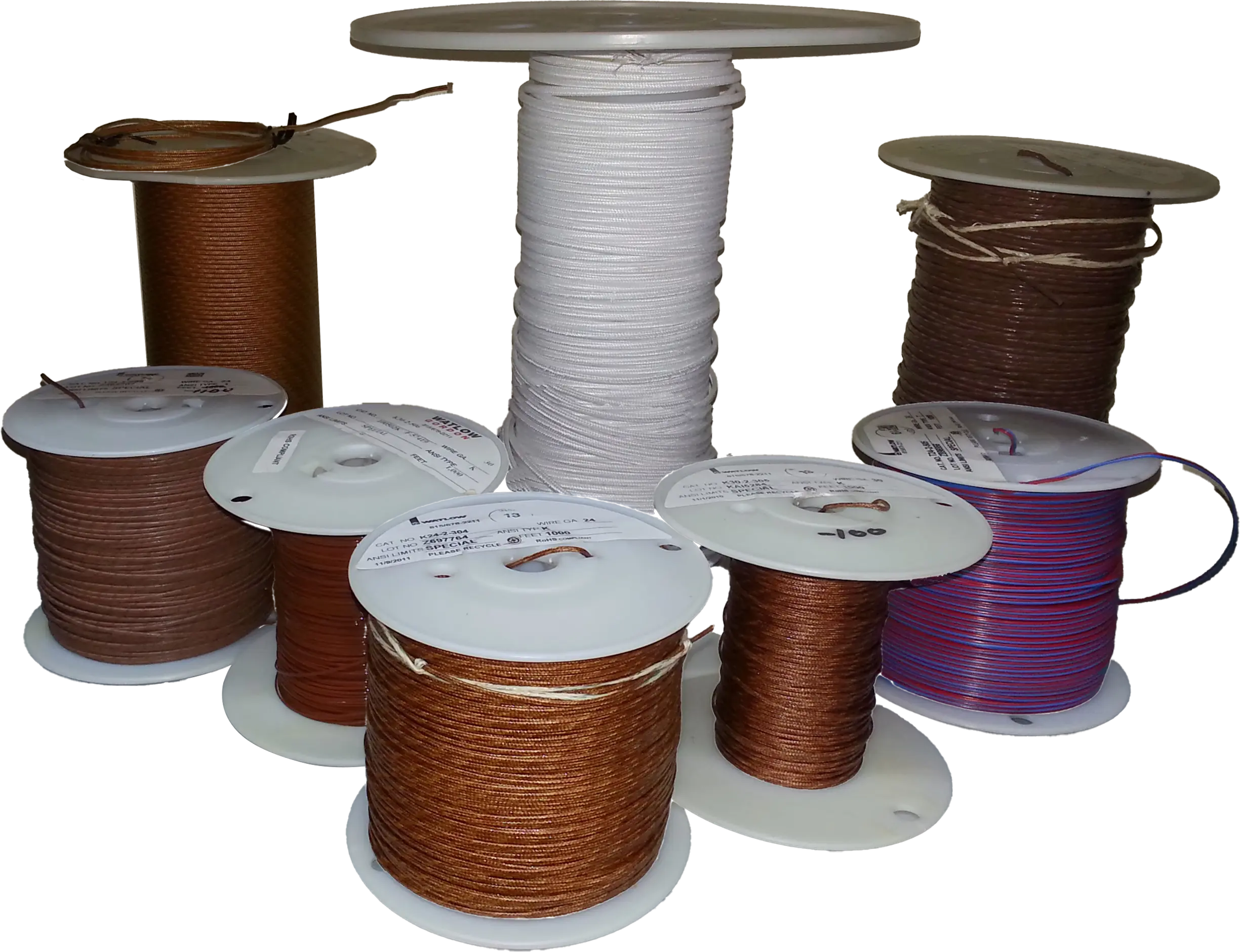

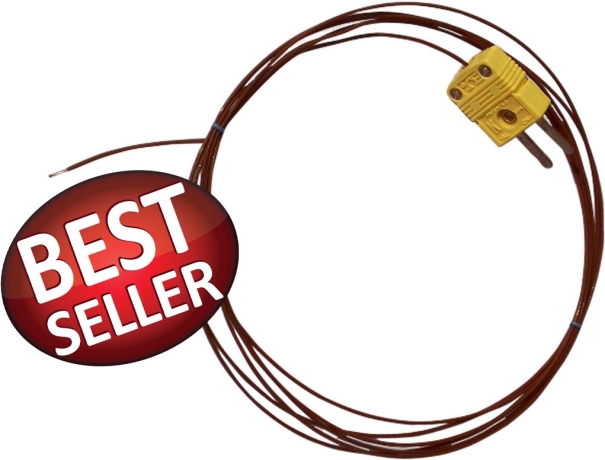

Types of Thermocouple wires
Thermocouples are temperature sensors that produce a voltage proportional to the temperature difference between their two junctions. Various types of thermocouple wires are available, each with its own characteristics. The most common types are designated by letter combinations. Here are some of the commonly used thermocouple types:
Type K (Chromel/Alumel):
This is one of the most popular and widely used types.
It has a wide temperature range and is resistant to oxidation.
Type J (Iron/Constantan):
Suitable for a limited temperature range and often used in vacuum applications.
Not as resistant to oxidation as Type K.
Type T (Copper/Constantan):
Has good resistance to corrosion and is suitable for low-temperature applications.
Commonly used in cryogenics.
Type E (Chromel/Constantan):
Suitable for moderate-temperature applications.
Exhibits good stability at lower temperatures.
Type N (Nicrosil/Nisil):
Has a temperature range similar to Type K.
Offers better stability and resistance to high-temperature oxidation.
Type S (Platinum/Rhodium):
Designed for high-temperature applications.
Offers high accuracy and stability at elevated temperatures.
Type R (Platinum/Rhodium):
Similar to Type S but with a slightly different composition.
Also used in high-temperature applications.
Type B (Platinum/Rhodium):
Suitable for very high-temperature measurements.
Offers excellent stability in extreme conditions.
